WAVE-32769, ESP32-C6 2.06inch AMOLED Touch Watch with Display, Supports WiFi 6 / Bluetooth 5 / Zigbee, with Battery Included

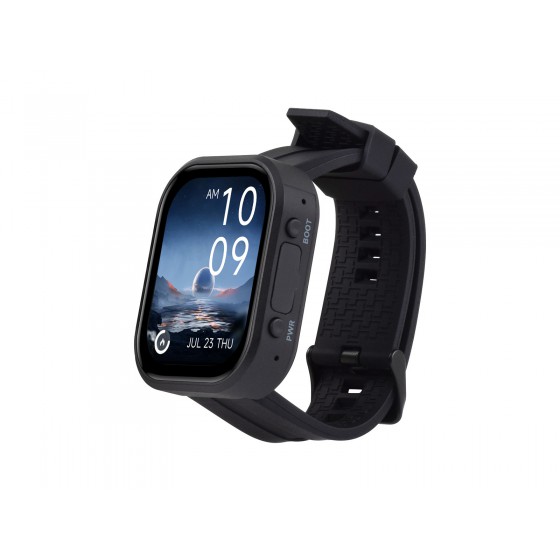

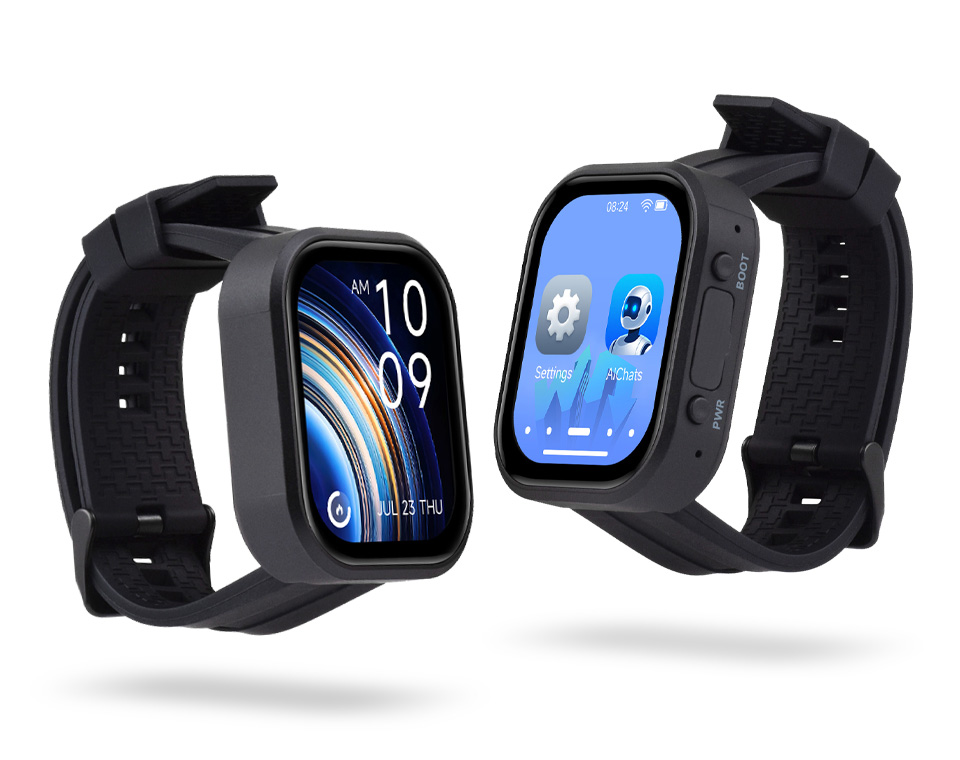

ESP32-C6 2.06inch AMOLED Watch Development Board
Embedded with CO5300 Display Driver and FT3168 Capacitive Touch Chip
Features
The ESP32-C6-Touch-AMOLED-2.06 is a high-performance, wearable watch-style development board designed by Waveshare. Based on the ESP32-C6 microcontroller, it integrates a 2.06inch AMOLED capacitive touch display, 6-axis IMU, RTC chip, audio codec chip, power management IC, and more. Comes with a custom-designed case with a smartwatch-like appearance, making it ideal for prototyping and functional verification of wearable applications.
- Adopts ESP32-C6 module with RISC-V 32-bit processor, up to 160MHz frequency
- Integrated WiFi 6, Bluetooth 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communication, with superior RF performance
- Built-in 512KB HP SRAM, 16KB LP SRAM, 320KB ROM, and 16MB Flash memory
- Type-C connector for easier use and improved compatibility
- Onboard 2.06inch AMOLED capacitive touch display for clear color picture display, 410 × 502 resolution, 16.7M colors
- Built-in CO5300 display driver and FT3168 capacitive touch chip, using QSPI and I2C communication respectively, effectively saving IO resources
- Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture, counting steps, etc.
- Onboard PCF85063 RTC chip, powered by Lithium Batt. through AXP2101 chip for uninterrupted power supply
- Onboard PWR and BOOT programmable buttons for easy custom function development
- Onboard 3.7V MX1.25 Lithium Batt. recharge/discharge header
- Reserved pads for 1 × I2C, 1 × UART and 1 × USB interfaces for connecting peripherals and debugging
- Adopts AXP2101 IC for efficient power management, supporting multiple voltage outputs, battery charging, management, and life optimization
- Adopts AMOLED screen featuring high contrast, wide viewing angle, rich colors, fast response, thinner design, and low power consumption
AMOLED Parameters
| Display Panel | AMOLED | Display Size | 2.06 inch |
|---|---|---|---|
| Resolution | 410 × 502 pixels | Display Colors | 16.7M |
| Brightness | 600 cd/㎡ | Contrast Ratio | 100000:1 |
| Communication Interface | QSPI | Driver IC | CO5300 |
| Touch | Supported | Touch IC | FT3168 |
Small Size, Touch More Possibilities
Suitable for various smart device development and can realize human-computer interaction functions. Supports connecting to a battery for independent operation.

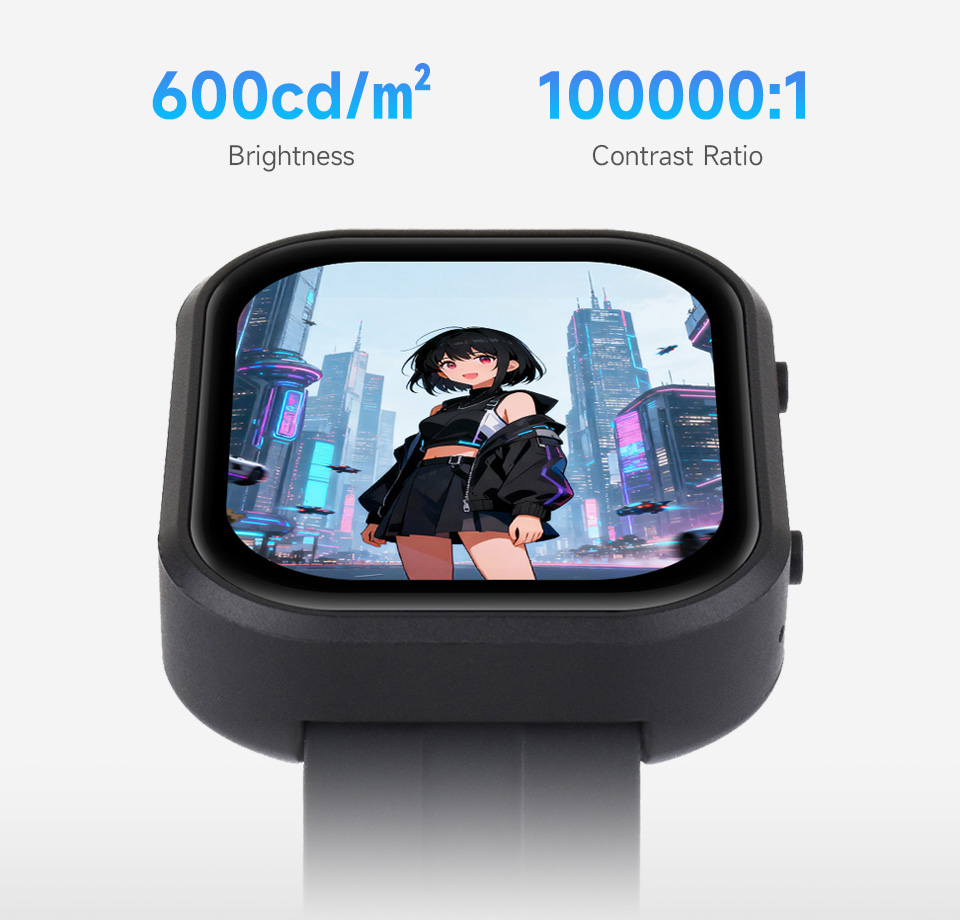

Adopts AMOLED Screen
The next-generation display technology. Compared to traditional LCD displays, the AMOLED screen features precise light-control capability, representing more delicate colors, finer picture details, and more vivid images and videos.

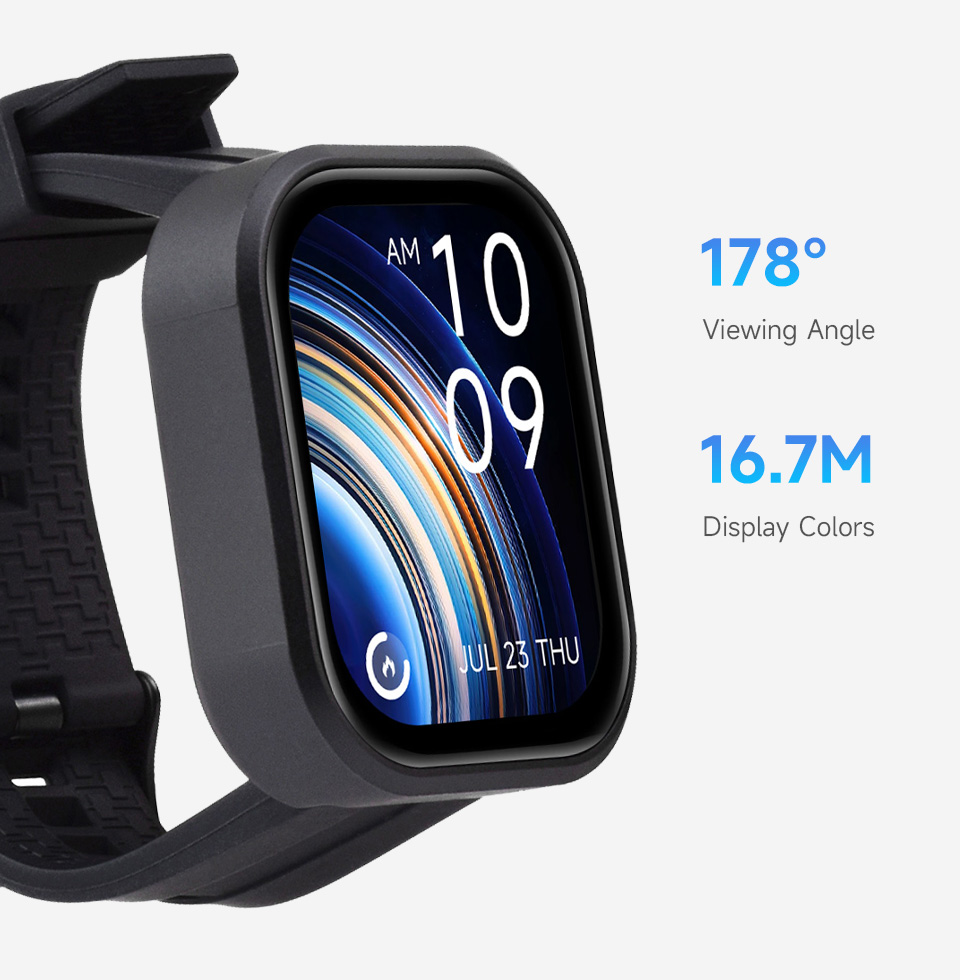

178° Wide Viewing Angle
Excellent display performance, 16.7M colors, and wide viewing angle.
Onboard Audio Codec
Onboard ES8311 audio codec chip and ES7210 echo cancellation circuit. Meets daily audio application scenarios.

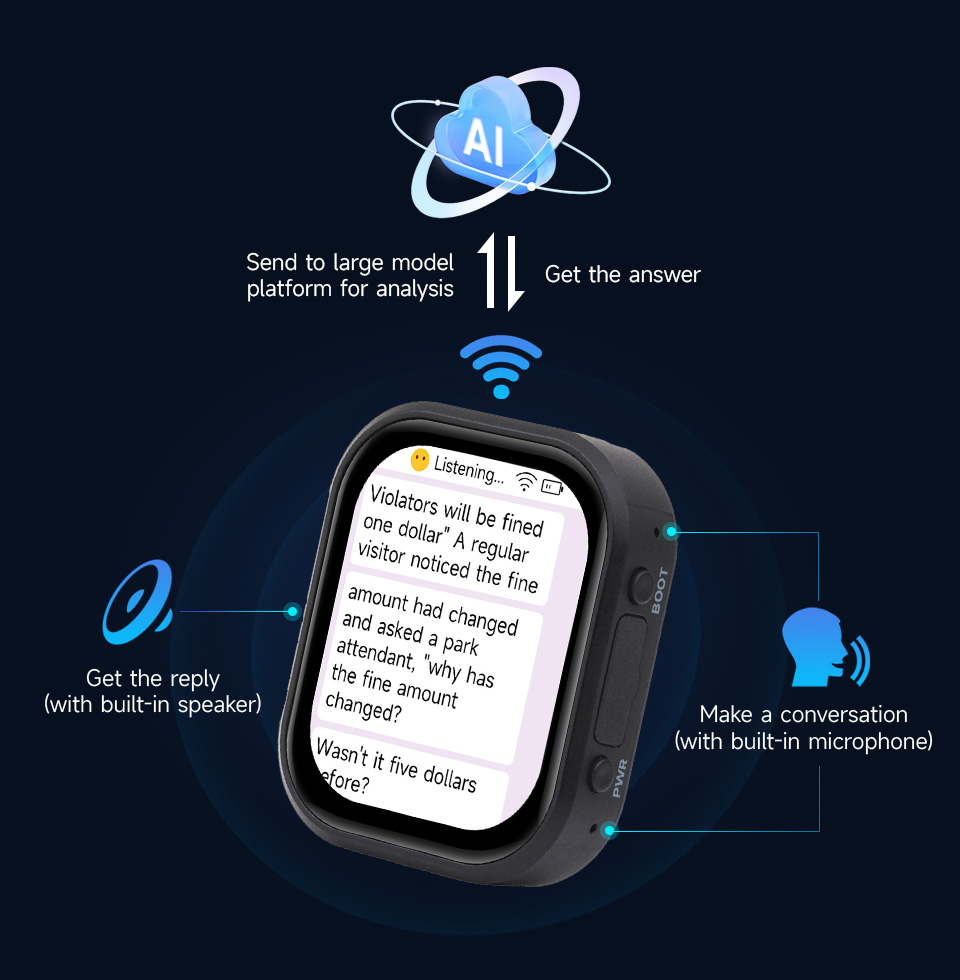

Supports AI Speech Interaction
Allows access to online large model platforms such as DeepSeek and Doubao.
Supports ESP-IDF and Arduino IDE
Comprehensive SDK, development resources, and tutorials to help you get started easily.
Wi-Fi 6 and BLE 5 Support
Supports Wi-Fi 6, Bluetooth 5, and IEEE 802.15.4 (Zigbee 3.0 and Thread). The Bluetooth Low Energy subsystem supports Bluetooth 5 (LE) and Bluetooth Mesh.

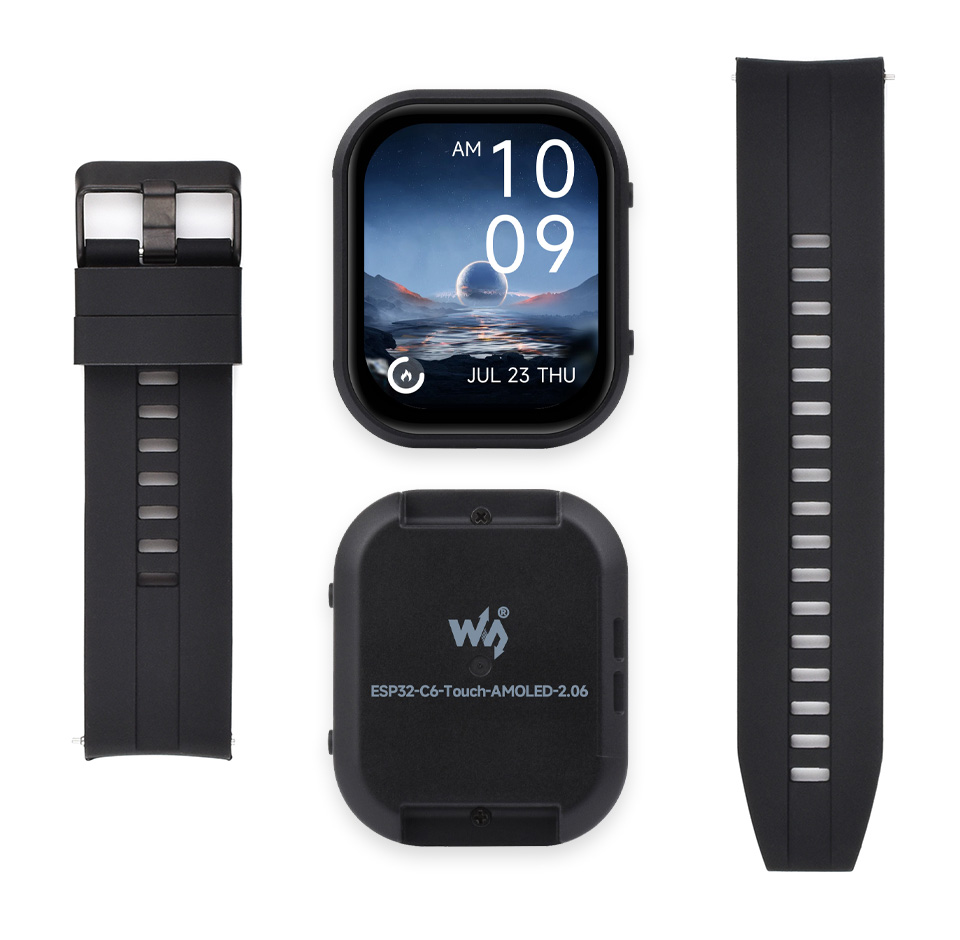

Wearable Design
Detachable watch straps for easy replacement and convenient matching with different styles.

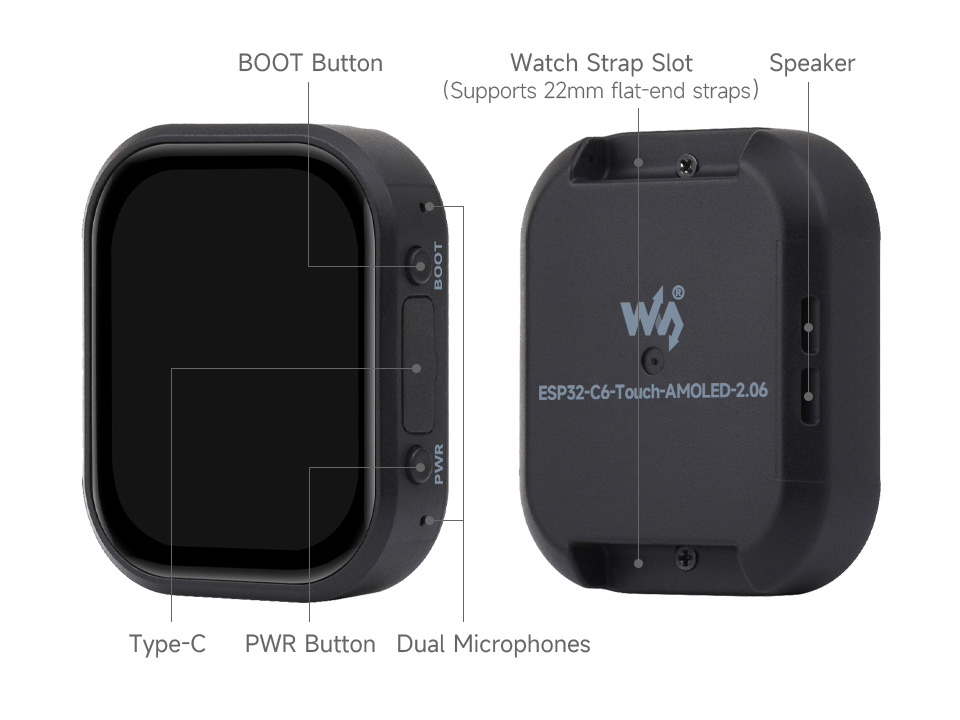

What's On Board

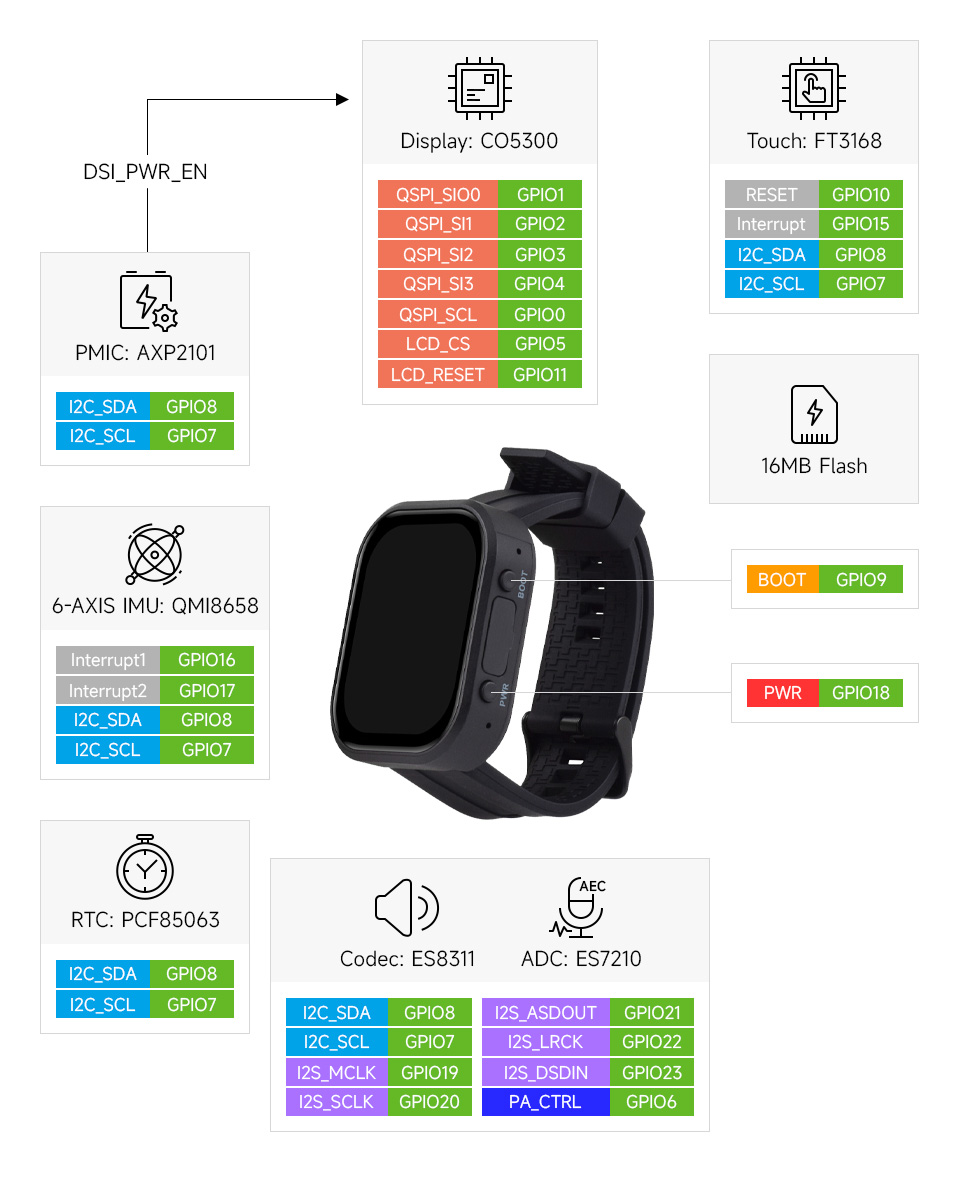

Pin Definition

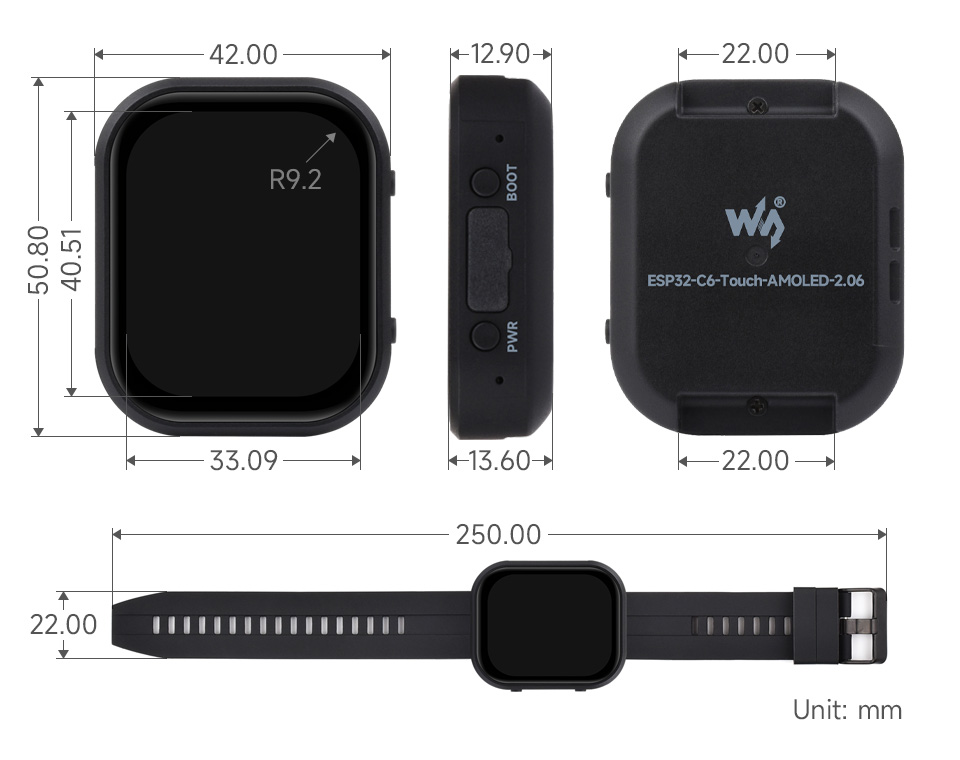

Outline Dimensions
