WAVE-31201, ESP32-C6 1.47inch Touch Display Development Board, Supports Wi-Fi 6 / BLE 5, 160MHz RISC-V Processor (Pre-soldered Headers)

WAVE-31201, ESP32-C6 1.47inch Touch Display Development Board, Supports Wi-Fi 6 / BLE 5, 160MHz RISC-V Processor (Pre-soldered Headers)

ESP32-C6-Touch-LCD-1.47

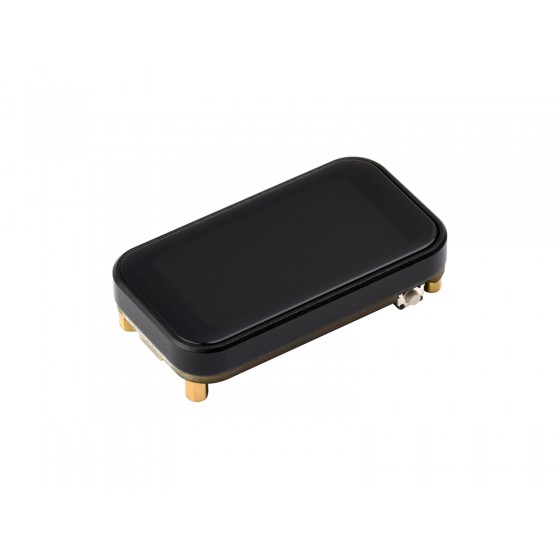

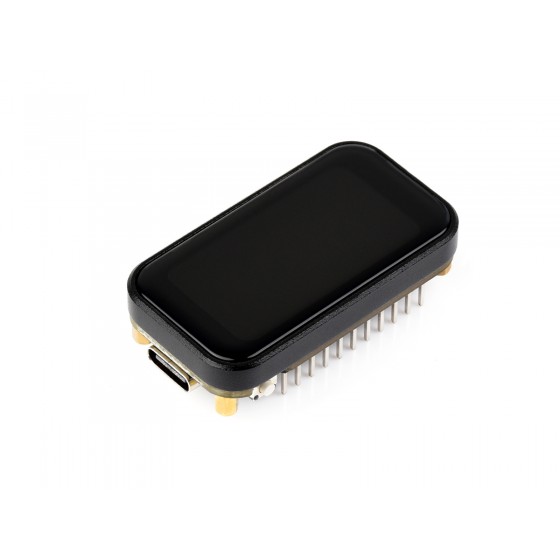

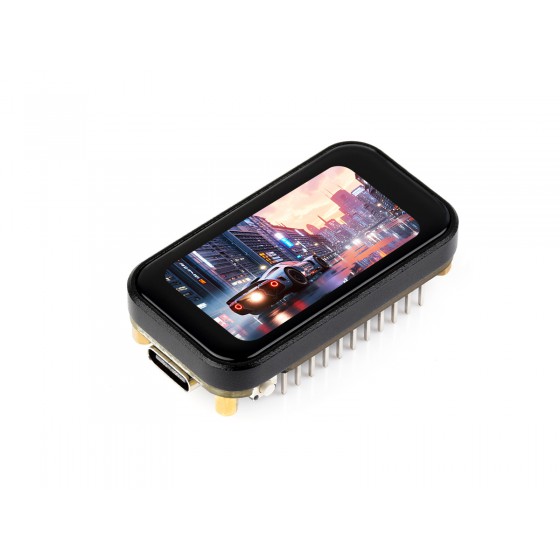

Onboard 1.47inch IPS touch display, can smoothly run GUI programs such as LVGL.

Features

ESP32-C6-Touch-LCD-1.47 uses the ESP32-C6FH8 chip with 2.4GHz WiFi 6 and Bluetooth BLE 5 support. It integrates 8MB Flash and a 1.47-inch IPS touch display that can smoothly run GUI programs like LVGL. Ideal for rapid HMI development and other ESP32-C6 applications.

• Equipped with a high-performance 32-bit RISC-V processor (up to 160 MHz) and a low-power RISC-V processor (up to 20 MHz)
• Supports 2.4GHz Wi-Fi 6 (802.11 ax/b/g/n) and Bluetooth 5 (LE) with onboard antenna
• Built-in 320KB ROM, 512KB HP SRAM, 16KB LP SRAM, and 8MB Flash
• 1.47-inch capacitive touch LCD, 172×320 resolution, 262K color
• Multiple IO interfaces, supports full-speed USB
• Onboard TF card slot for external storage
• Supports flexible clock and power modes for efficient low-power operation

Display Specifications

ESP32-C6 for AIoT Applications

Equipped with a high-performance 32-bit RISC-V processor and a low-power RISC-V processor, the ESP32-C6 offers powerful AI computing capability and reliable security features.

Wi-Fi 6 and BLE 5 Support

ESP32-C6 integrates 2.4GHz Wi-Fi 6 (802.11 ax/b/g/n) with 40 MHz bandwidth and supports Bluetooth 5 (LE) and Bluetooth Mesh.

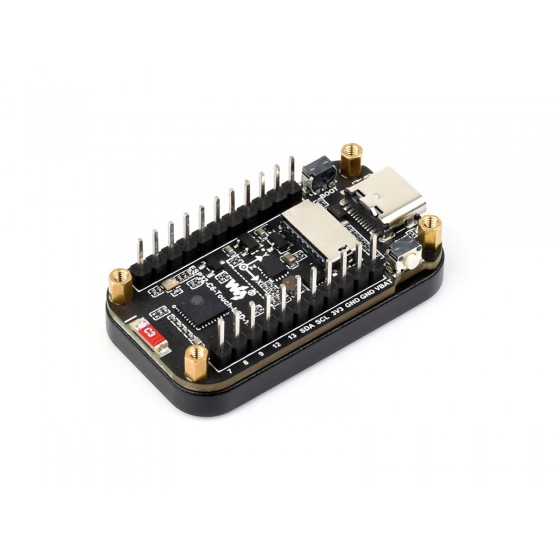

Pin Definition

Supports expansion of multiple peripherals via GPIO header.

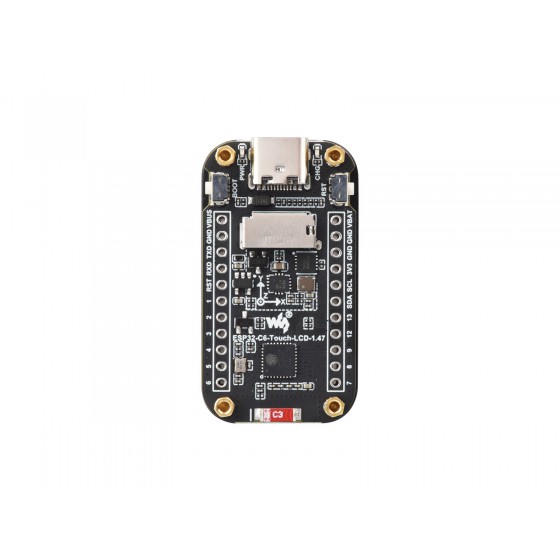

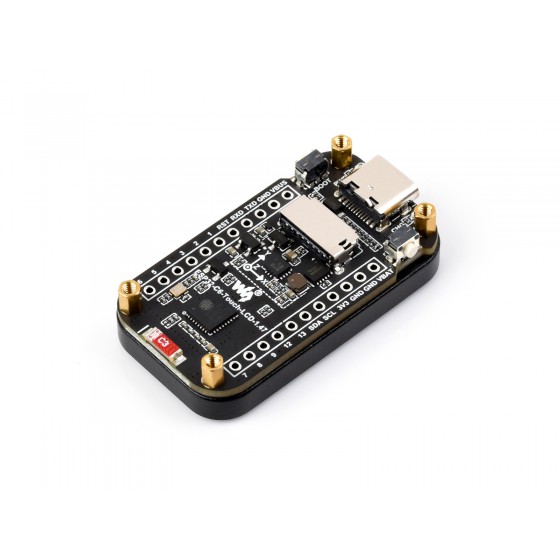

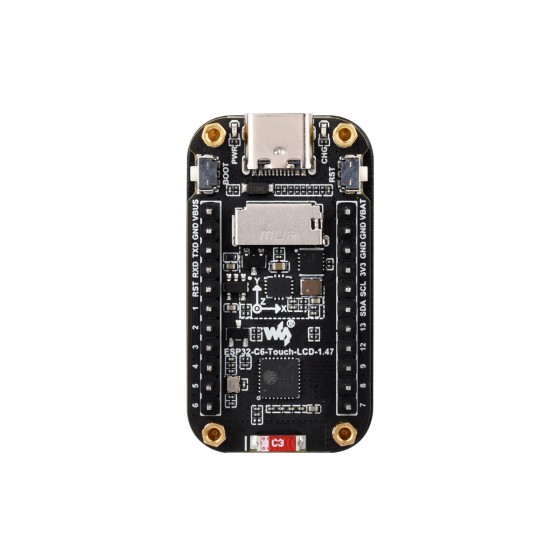

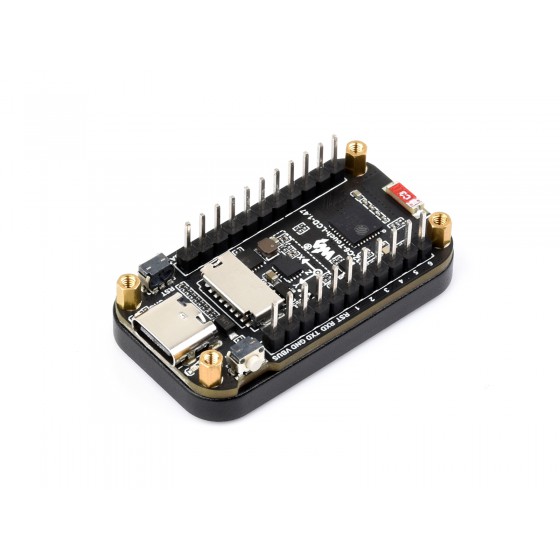

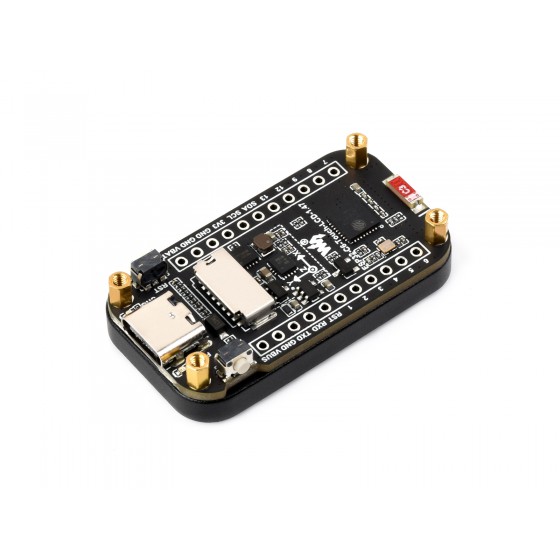

What's On Board

1. ESP32-C6FH8
2. Onboard ceramic antenna
3. ME6217C33M5G – Low dropout regulator, 800mA output (Max.)
4. QMI8658 – 6-Axis IMU
5. ETA6098
6. TF card slot
7. RESET button
8. BOOT button
9. Type-C interface
