WAVE-31197, ESP32-S3 1.64inch AMOLED Touch Display Development Board, Onboard Accelerometer And Gyroscope Sensor
ESP32-S3 1.64″ AMOLED
Touch Display Development Board
Embedded with CO5300 Display Driver and FT3168 Capacitive Touch Chip
Product Features

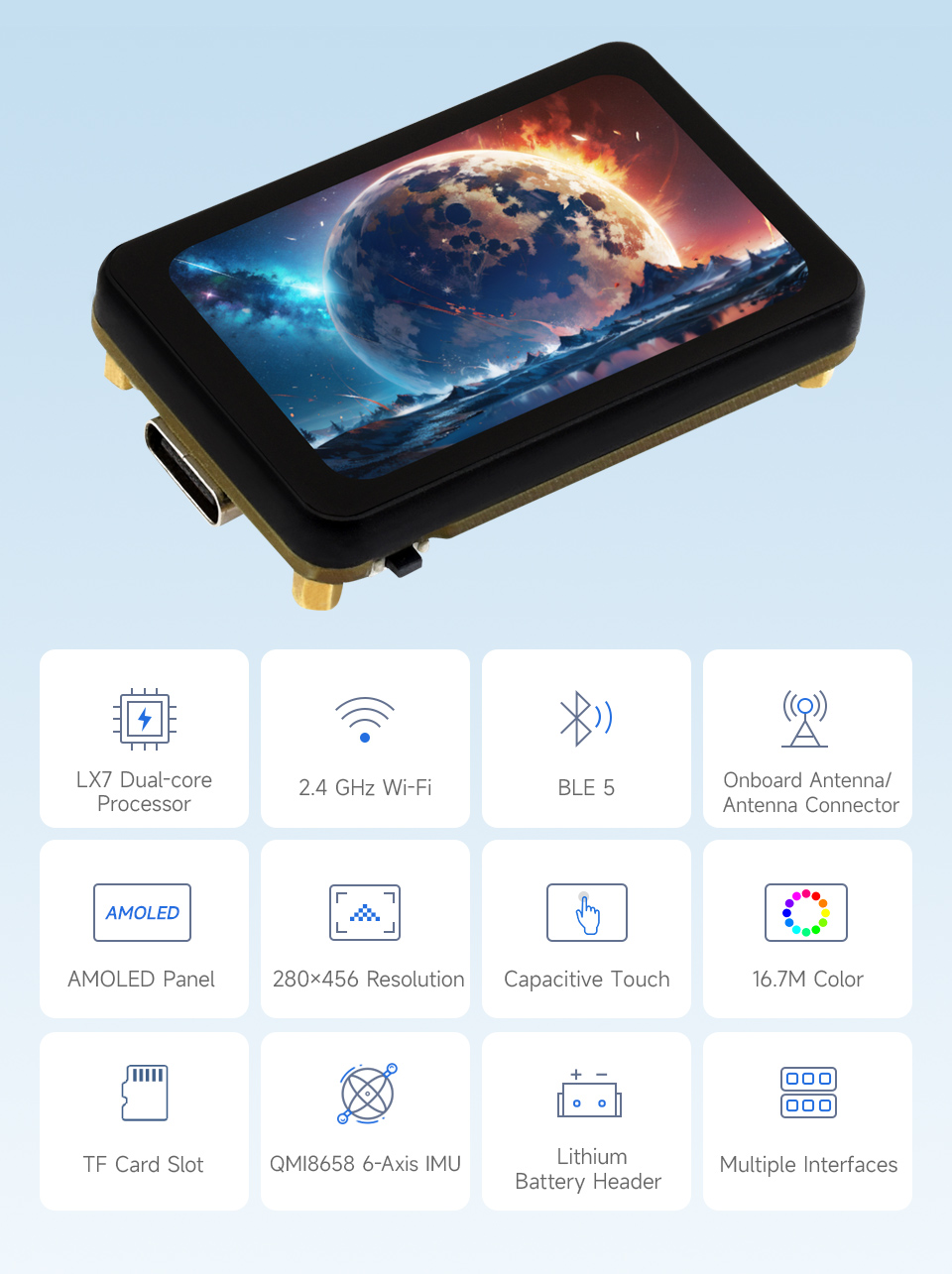

This product adopts ESP32-S3R8 chip with 2.4GHz Wi-Fi and Bluetooth BLE 5 support, and integrates high-capacity Flash and PSRAM. Onboard 1.64inch AMOLED display, capable of smoothly running GUI programs such as LVGL. Onboard rich peripheral resources such as QMI8658 6-axis IMU, TF card slot, and Lithium battery header, etc., while also providing USB, UART, I2C and multiple MUX_GPIO interfaces for strong expandability. It is ideal for the quick development of the HMI and other ESP32-S3 applications.
- Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
- Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with an onboard antenna. The device allows switching to use an external antenna by resoldering an onboard resistor
- Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM
- Onboard 1.64inch AMOLED display, QSPI interface, 280 × 456 resolution, 16.7M color
- Supports capacitive touch function, controlled via I2C interface
- Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for motion gesture detection, step counting, and more
- Onboard RST button, along with programmable BOOT button for customizable functionality and flexible development
- Onboard 3.7V MX1.25 Lithium battery recharge/discharge header
- Onboard TF card slot, enabling external storage for pictures or files
- Onboard USB Type-C port for power supply, program downloading, and debugging, making development more convenient
- Adapting I2C, UART, and USB interfaces, for connecting peripherals and debugging
- Adopts CNC-machined metal frame for better protection, nice looking and more durable
AMOLED parameters
| Display Panel | AMOLED | Display Size | 1.64 inch |
|---|---|---|---|
| Resolution | 280 × 456 | Display Colors | 16.7M |
| Brightness | 350 cd/㎡ | Contrast Ratio | 60000:1 |
| Communication Interface | QSPI | Driver IC | CO5300 |
| Touch | Supported | Touch IC | FT3168 |
Adopts AMOLED screen
The AMOLED is recognized as the next-generation display technology, offers superior light-control precision compared to traditional LCD screens. It delivers more vibrant colors, finer details, and more lifelike videos and images.

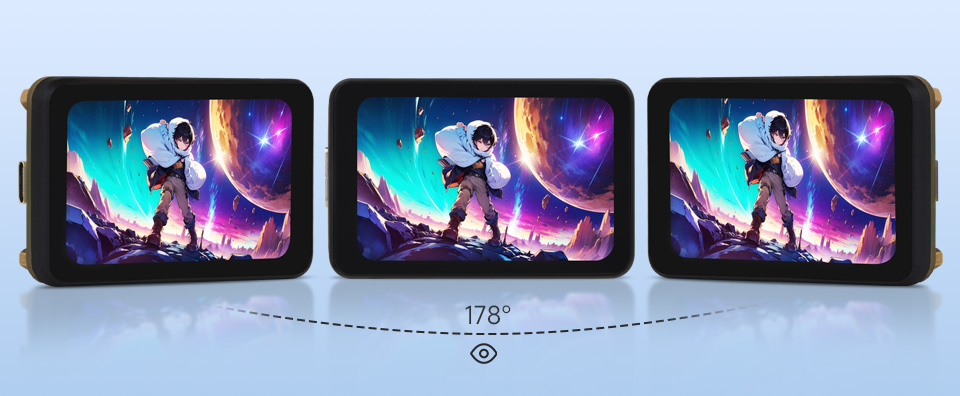

178° wide viewing angle
Excellent Display Performance, 16.7M color, wide viewing angle
Supports ESP-IDF, Arduino IDE
Comprehensive SDK, dev resources, tutorials to help you easily get started

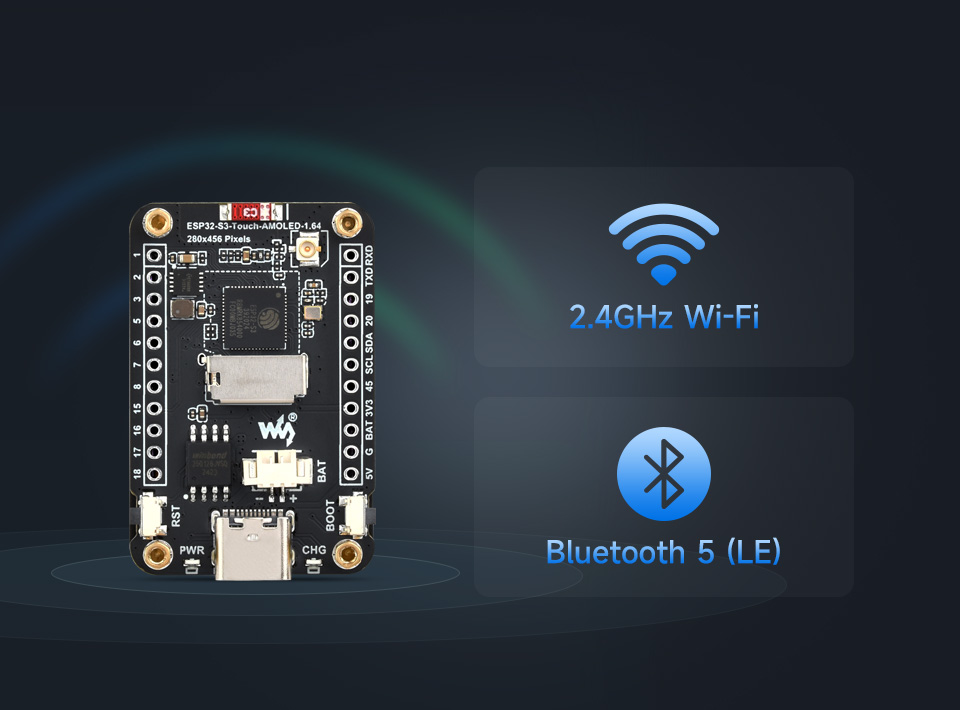

Wi-Fi and BLE 5 support
ESP32-S3 integrates 2.4 GHz Wi-Fi (802.11 ax/b/g/n) with 40 MHz of bandwidth support. Its Bluetooth Low Energy subsystem supports Bluetooth 5 (LE) and Bluetooth Mesh.

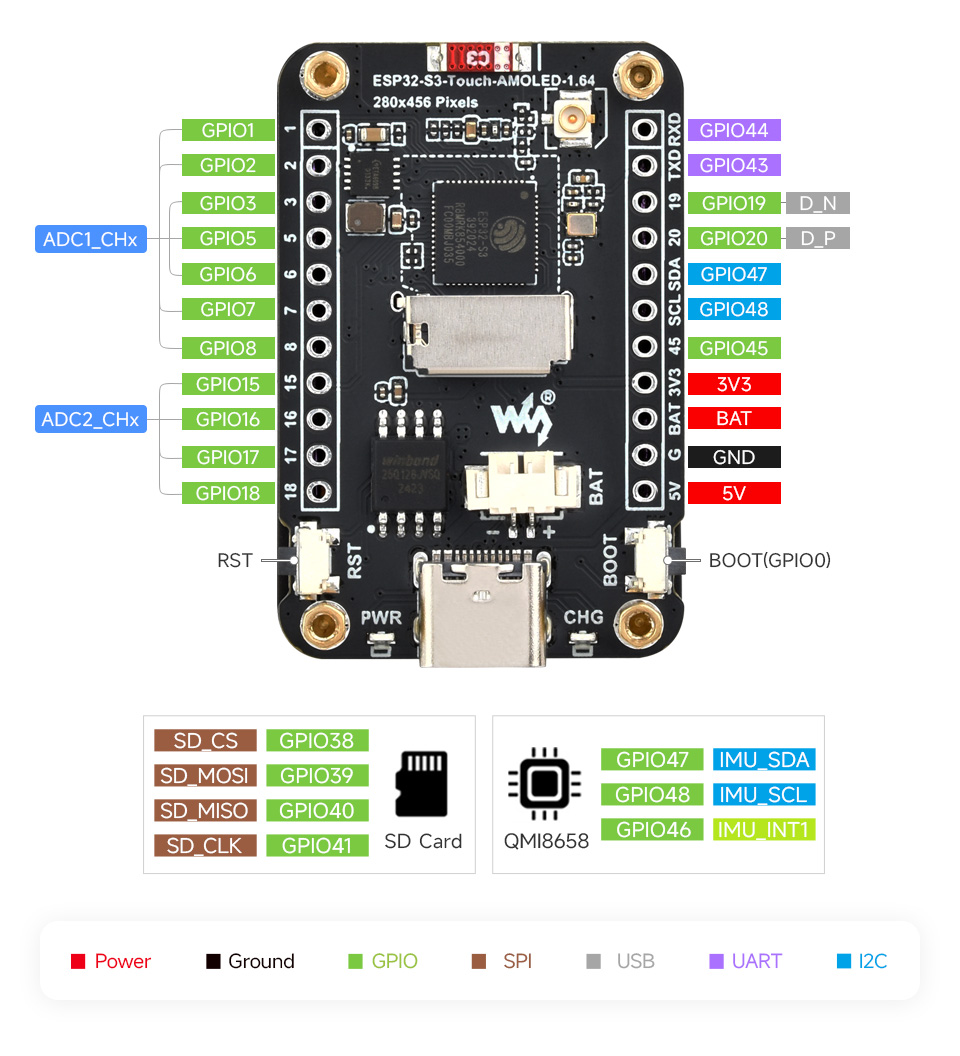

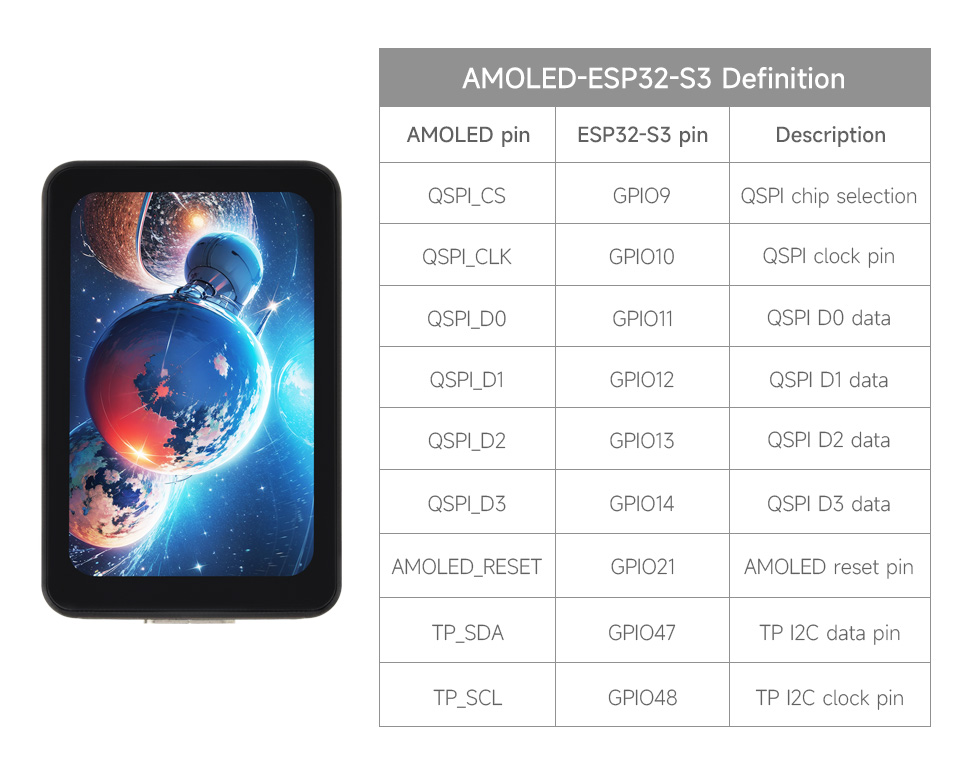

Interface definition
Provides multiple interfaces for strong expandability and flexibility

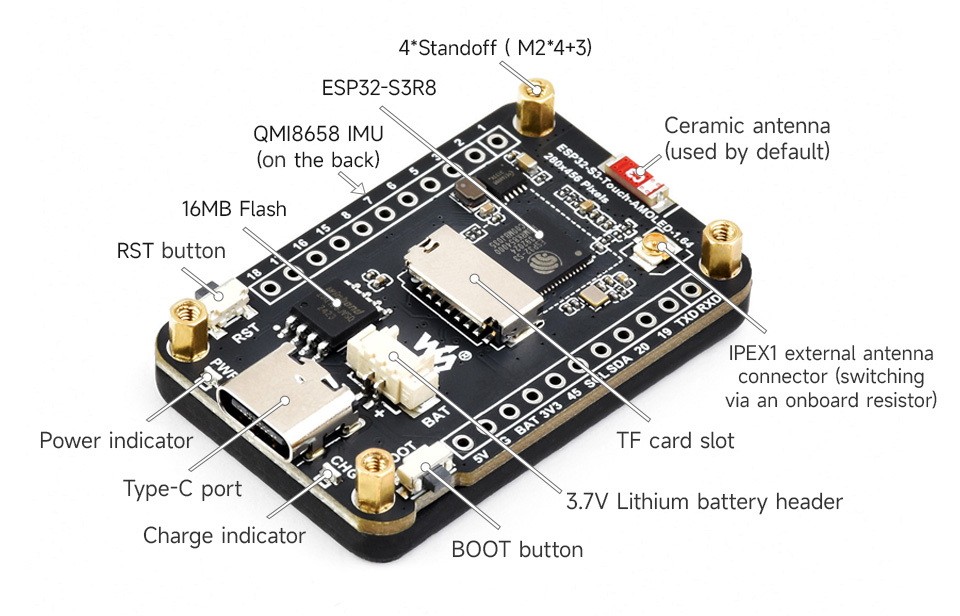

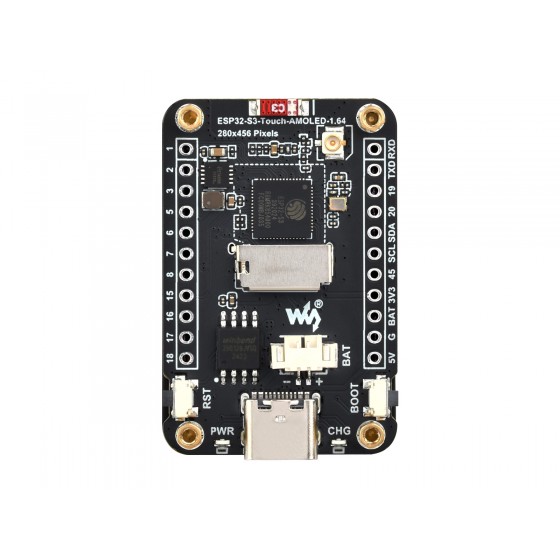

What's On Board

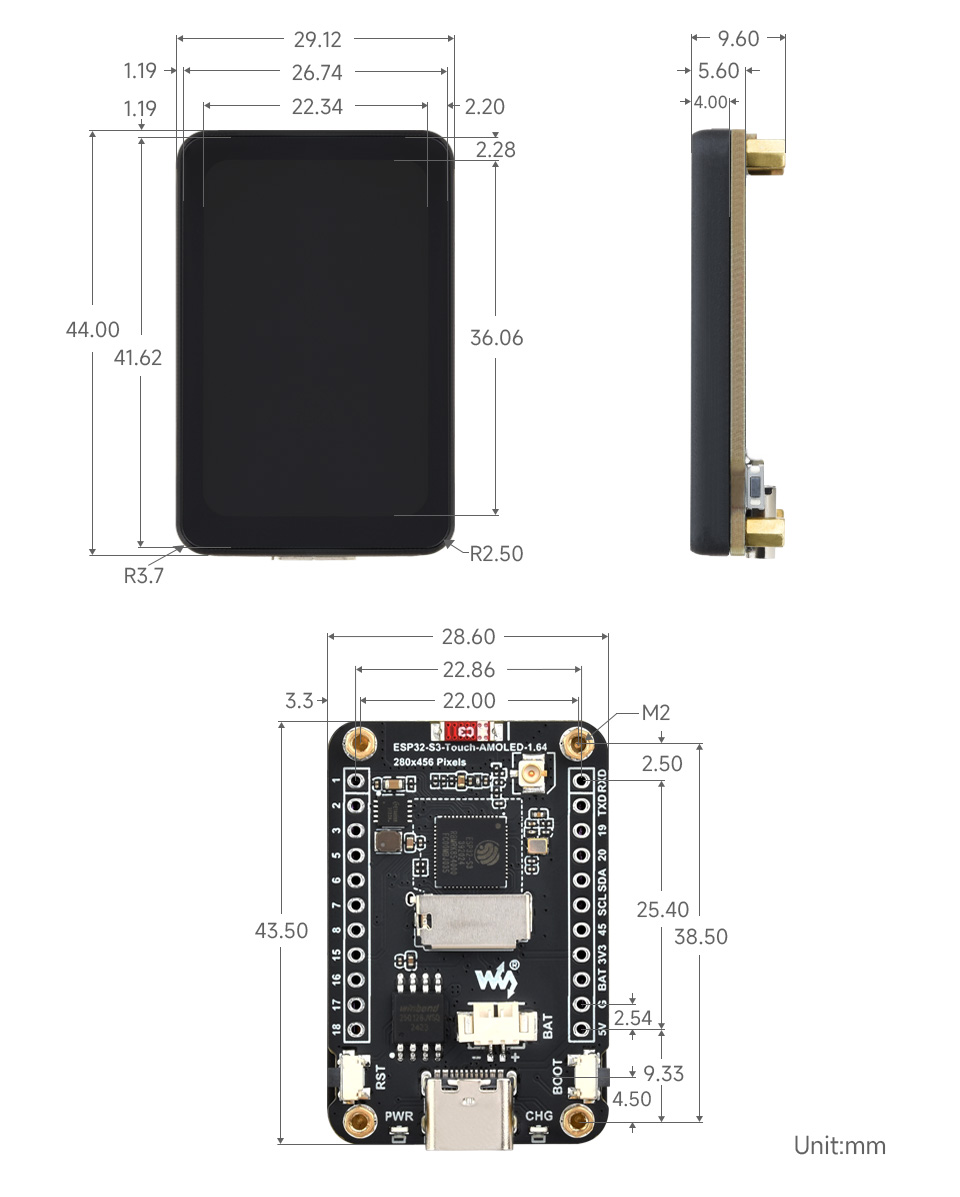

Dimensions
