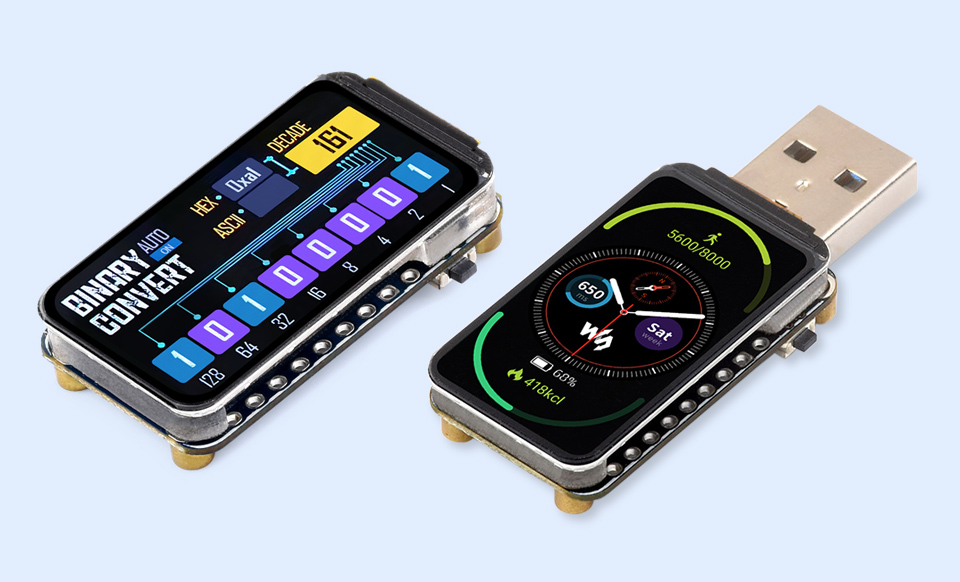

RP2350 1.47inch LCD Display Development Board

Based on Raspberry Pi RP2350A

This product is a low-cost, high-performance MCU board designed by Waveshare. Tiny in size with an onboard 1.47inch LCD display, TF card slot, and RGB LED, it is ideal for quick development and product integration.

• RP2350A microcontroller chip designed by Raspberry Pi in the UK
• Dual-core, dual-architecture: Arm Cortex-M33 + Hazard3 RISC-V cores, up to 150 MHz
• 520KB SRAM and 16MB onboard Flash memory
• USB Type-C connector for easier programming (Type-C version only)
• 1.47inch LCD display, 172×320 resolution, 262K color
• USB 1.1 with device and host support
• Low-power sleep and dormant modes
• Drag-and-drop programming via USB mass storage
• Built-in clock and timer
• Onboard temperature sensor
• RGB LED with clear acrylic sandwich panel for lighting effects

Dual-core, dual-architecture

The RP2350 offers both dual Arm Cortex-M33 and dual Hazard3 RISC-V cores, allowing developers to explore open-hardware architecture within a stable and well-supported framework.

Supports C/C++, MicroPython, and Arduino IDE

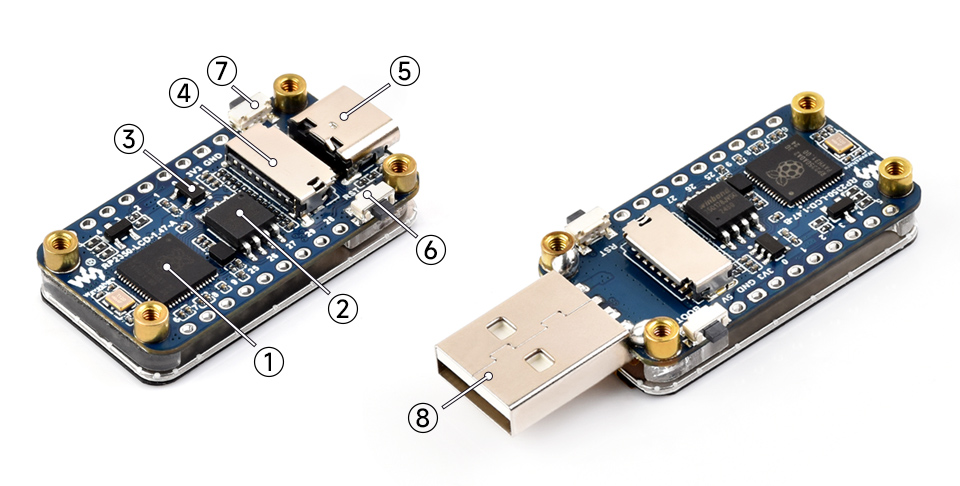

What's On Board

1. RP2350A: Dual-core and dual-architecture MCU, up to 150 MHz
2. W25Q128JVSIQ: 16MB NOR Flash
3. RT9193-33PB: 300mA low dropout, low noise LDO regulator
4. TF card slot
5. USB Type-C connector (Type-C version only): For programming, USB 1.1 device/host
6. RST button
7. BOOT button
8. USB Type-A connector (Type-A version only): For programming

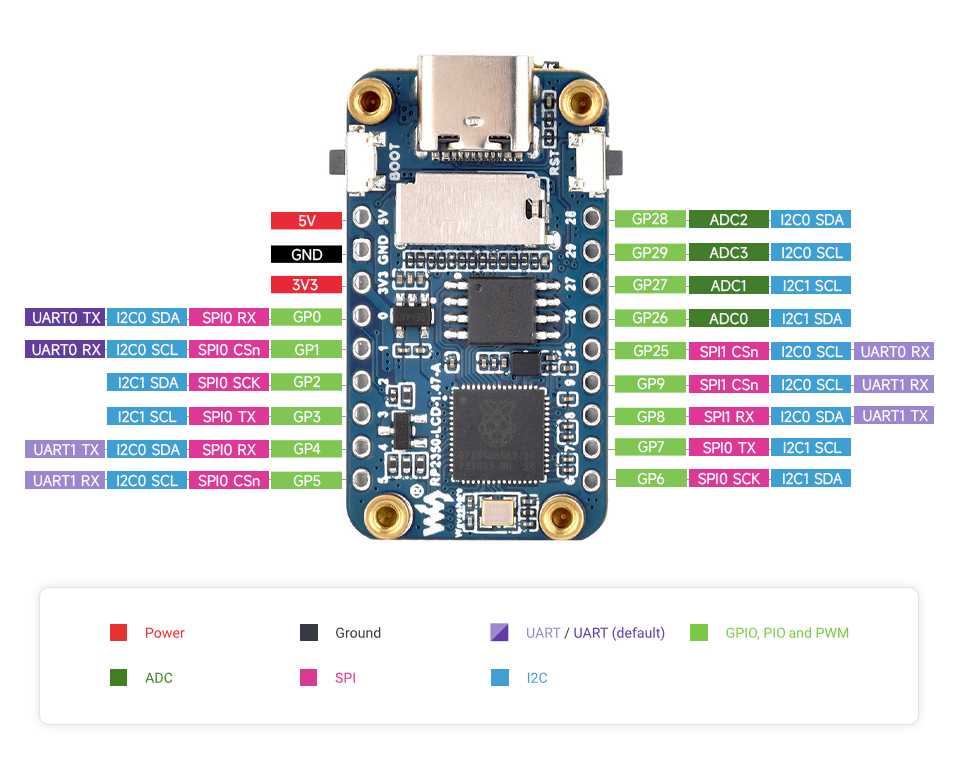

Interface Definition

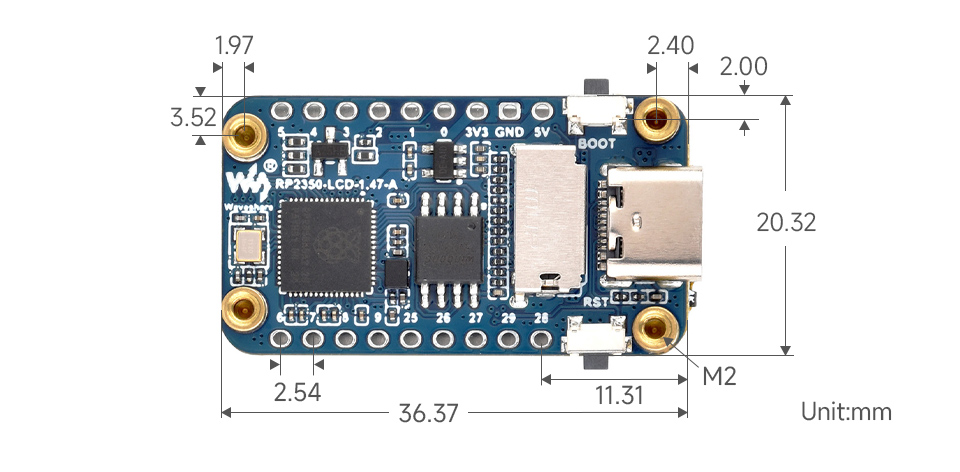

Dimensions

Wiki:
www.waveshare.com/wiki/RP2350-LCD-1.47-A
www.waveshare.com/wiki/RP2350-LCD-1.47-B
