Ferrule Crimp Kit , Sizes 0.75-10mm, 260 pcs.
Useful connecting high current cable to those small plastic terminal blocks without worrying about wires touching each other. You will need a crimper to crimp these connectors into place on the wires! This kit comes with various sizes in a clear plastic box. Please note that the sizes and color of the connectors differ from the usual standardization as these connectors are supposed to be color coded. Follow our table below for current limitation and wire gauge recommendation!

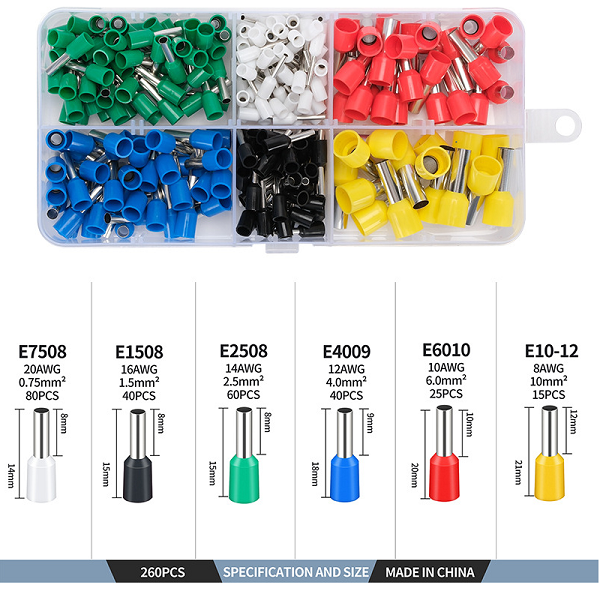

Contents and parameters:
|
Model |
COLOR |
AWG |
WIRE SIZE |
TOTAL LENGTH/ METAL INSERT |
QTY PER |
|
E7508 |
WHITE |
20AWG |
0.75mm2 |
14mm/8mm |
80 |
|
E1508 |
BLACK |
16AWG |
1.5mm2 |
15mm/8mm |
40 |
|
E2508 |
TURQUOISE |
14AWG |
2.5mm2 |
15mm/8mm |
60 |
|
E4009 |
BLUE |
12AWG |
4.0mm2 |
18mm/9mm |
40 |
|
E6020 |
RED |
10AWG |
6.00mm2 |
20mm/10mm |
25 |
|
E10-12 |
YELLOW |
8AWG |
10.00mm2 |
21mm/12mm |
25 |
