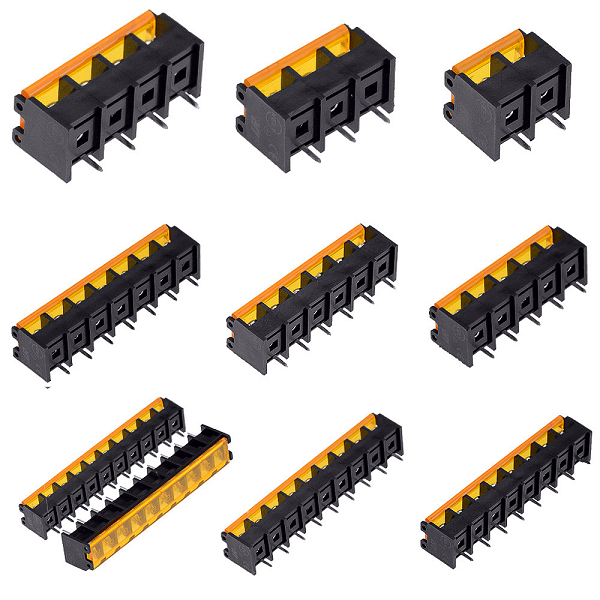

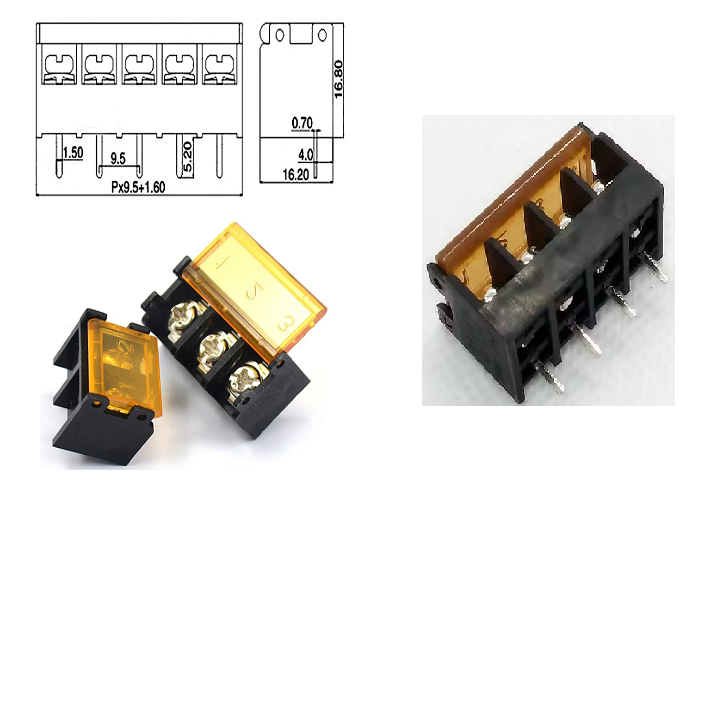

This is a single row high current 9.5mm pitch Lid Cover Barrier Terminal Block rated at 300V and 30A.
Specifications:
- Spacing: 9.5mm (0.374”)
- Number of Poles: 6
- Ambient Temperature: -40°C -105°C
- Instantaneous Temperature: 250°C/ second
- Stripping length: 6-7 mm
- Rated voltage: 300V
- Rated current: 30A
- Impulse voltage: 2000VAC /IM in.
- Wire diameter: 22-12 AWG
- Plastic parts: PA66. UL94V-0
- Screws: M4 Steel
- Terminals: Brass
- Number of poles available: 2,3,4,5,6,7,8,9,10.
