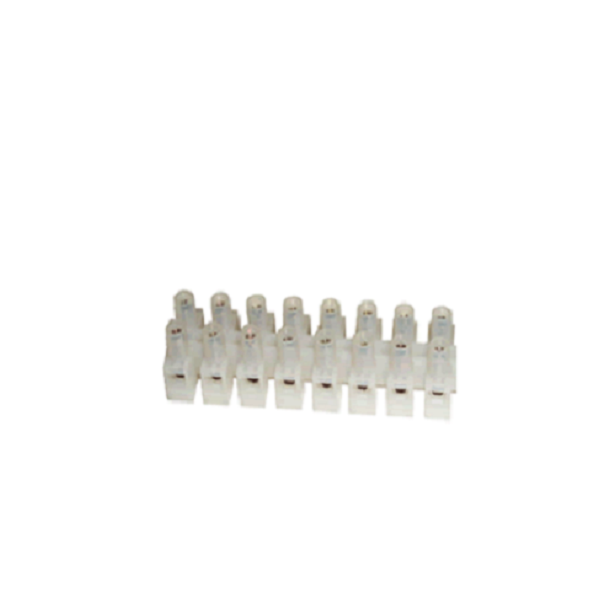

These Euro Style Barrier Strips are available in several sizes depending on your current needs.
| Order# | Rating | Clamping Area | Wire Range | Screw |
| 13-0808 | 30A, 600V | 4.0mm² | 22-12 Sol, 14-10 Str | M3.0x6 |
| Unit | A | B | C | D | E | F |
| mm/inch | 117.5/4.63 | 20.20/0.80 | 17.00/0.67 | 10.00/0.39 | 3.60/0.14 | 3.4±0.1/0.13 |
They are cutable to almost any desired length.
Specifications
- Base: With 1.2 - 2.5mm raised base
- Housing Material: Polyamide 66 (Nylon 66), UL 94V-2
- Temperature Rating: 105oC (UL), -30oC to 110oC (VDE)
- Terminal Insert: Brass metal alloy, nickel plated
- Screw: Zinc plated
These terminal blocks are available in 20A, 30A, 35A, and 50A versions.
| Order# | 13-1208 | 13-1210 | 13-1216 | 13-1232 |
| Rating | 20A, 600V | 30A, 600V | 35A, 600V | 50A, 600V |
| Clamping Area | 2.5mm² | 4.0mm² | 6.0mm² | 10.0mm² |
| Wire Range | 22-12 Sol/Str | 22-10 Sol 14-10 Str | 22-12 Sol/Str | 22-8 Sol/Str |
| Screw | M2.6x5 | M3.0x6 | M3.5x7 | M4.0x9 |
| Unit | mm/inch | mm/inch | mm/inch | mm/inch |
| A | 96.20/3.79 | 117.5/4.63 | 140.7/5.40 | 158.0/6.22 |
| B | 17.00/0.67 | 20.20/0.80 | 23.80/0.94 | 25.60/1.01 |
| C | 14.50/0.57 | 17.00/0.67 | 19.00/0.75 | 25.20/0.99 |
| D | 8.00/0.32 | 10.00/0.39 | 12.00/0.49 | 13.50/0.53 |
| E | 2.90/0.11 | 3.60/0.14 | 3.90/0.15 | 4.40/0.17 |
| F | 2.8±0.1/0.11 | 3.4±0.1/0.13 | 4.2±0.1/0.15 | 5.0±0.1/0.19 |
