CON-MLX3-KIT MX3.0 Cable Connector Kit, Molex Micro-Fit 3.0mm Pitch Dual Row 2 *1 to 6-Pin Male/Female

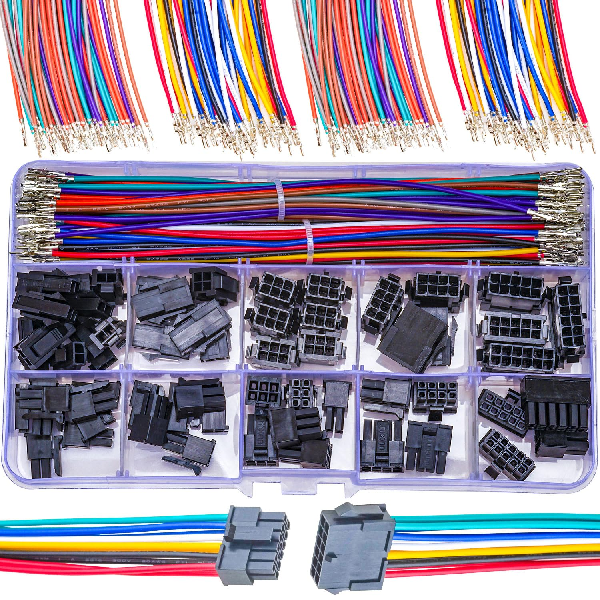

This is a 3mm pitch dual row Molex connector kit 1-6 pin male/female housings and crimp pins, assembled on 160mm long 22AWG wires.

Specifications:

Connector: Black Molex Dual Row, 3.0mm pitch

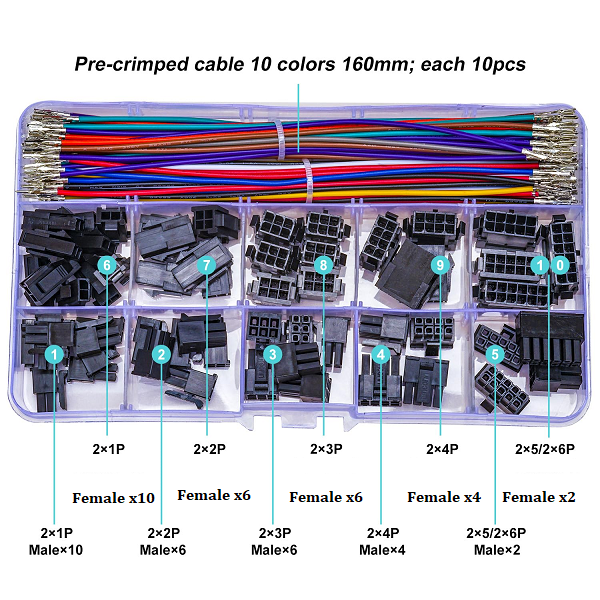

Connectors Male/Female: 2*1P, 2*2P, 2*3P, 2*4P, 2*5P, 2*6P.

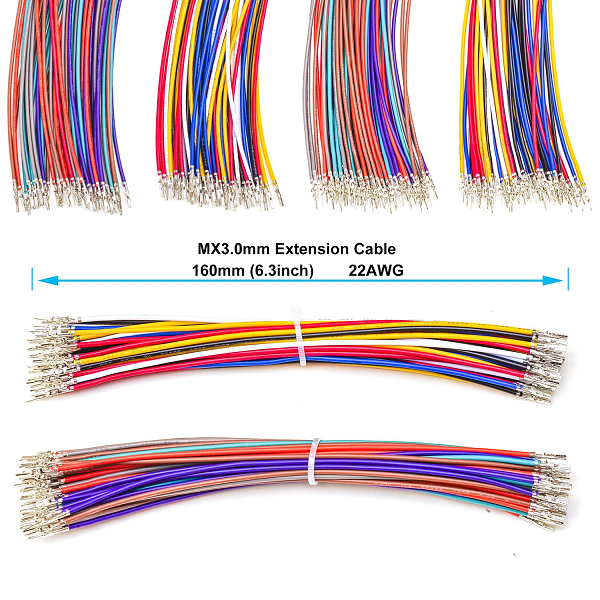

Extension cable: 22AWG multiple colors

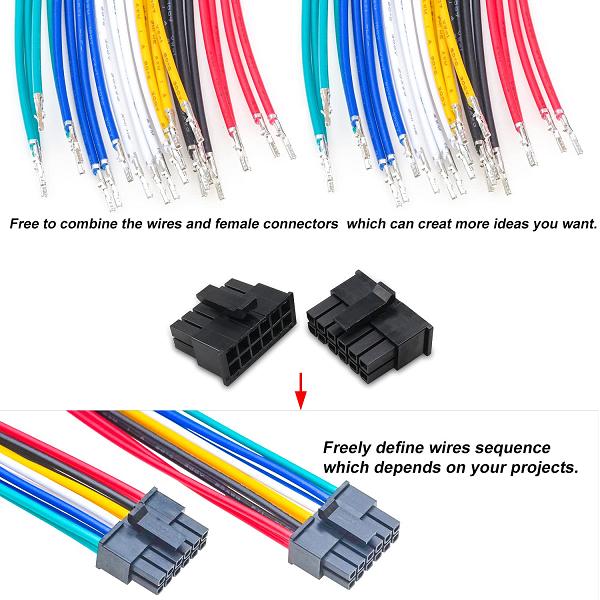

Cable termination: male to female crimp pin
Cable Length: 160mm (6.3 inch)
Container (plastic): 175 x 100mm

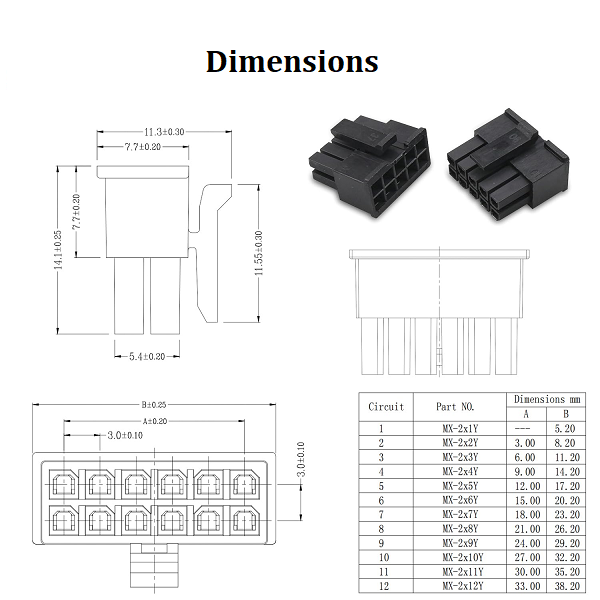

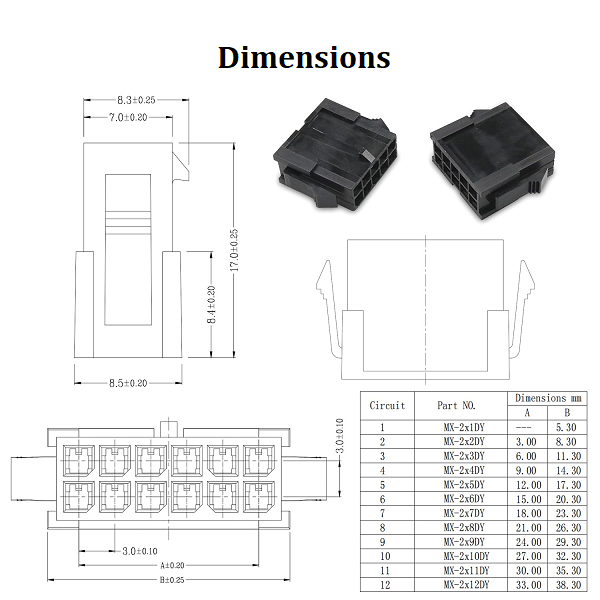

Dimensional data: see photos
