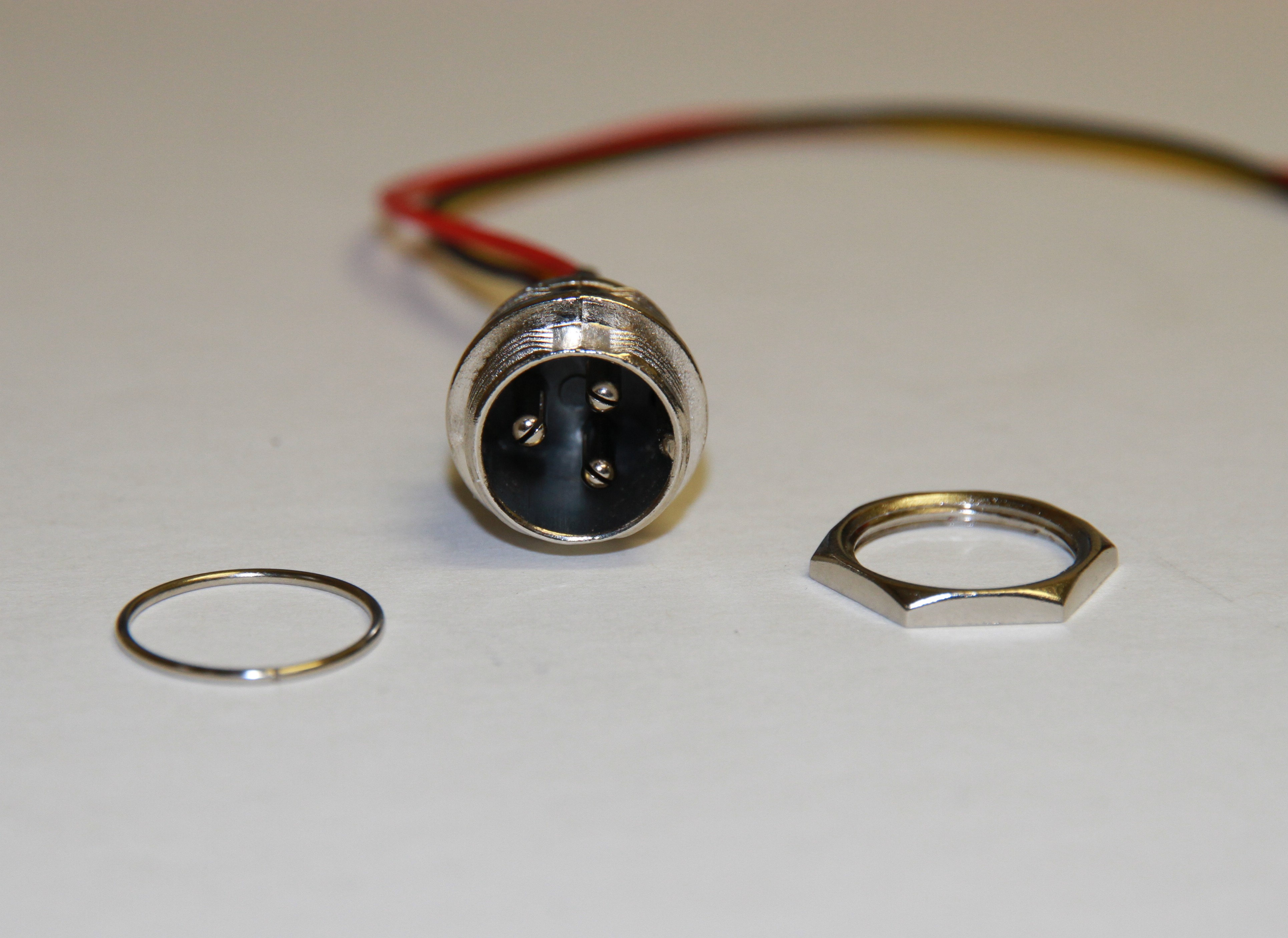

Male GX16-3 Pin 16mm Connector with 20 cm long bare wires
This male connector is a 3 pin, 3 bare wires, widely used in electronics for aviation microphones, navigation, computers, communication, transportation, machinery and alarms.
Specifications
- Contacts: 3
- Bare Wire length: 20cm
- Wire colors: Red, Black & Yellow
- Wire Diameter: 22 AWG
- Rated Voltage: 400V DC
- Rated Current: 5A
- Withstand Voltage: 1500V AC
- Vibration frequency: 10 ~ 100Hz, acceleration up to 100m / s2
- Impact frequency: 60 to 80 beats / min, acceleration up to 250m / s2
- Centrifugal: acceleration up to 250m / s2
- Service life: >500 times of plug & unplug
- Pin material: Copper Nickel Plated
- Dimensions:
- Outer Diameter: 15.5mm
- Length: 20.5mm
- Net Weight: 15.3g
- Color: Silver
- Ambient Temp.: -50℃ to 70 ℃
