The Weller D650PK is a heavy-duty industrial soldering gun designed for applications requiring high heat and rapid soldering. Ideal for automotive, electrical, and fabrication work, it provides consistent performance for thick wires, large terminals, grounding points, and metal chassis connections.
Features: Dual-heat output: 200W(Low)/300W(High), trigger-controlled, fast warm-up for efficient workflow, heavy-gauge copper tip ensures strong heat transfer, built-in illumination light for improved visibility, rugged, industrial-grade housing for durability, includes protective carrying case
Technical Specifications
- Part Status: Active
- Type: Soldering Gun
- Input Voltage: 120V AC
- Input Connector: NEMA 5-15P
- Region Utilized: North America
- Tip Temperature: 900°F (482°C) / 1100°F (593°C)
- Compatible Tip Types: 6150, 6160, 7250
- Tip Diameters: 0.34" (8.6 mm) / 0.33" (8.3 mm)
- Workstand: Not included

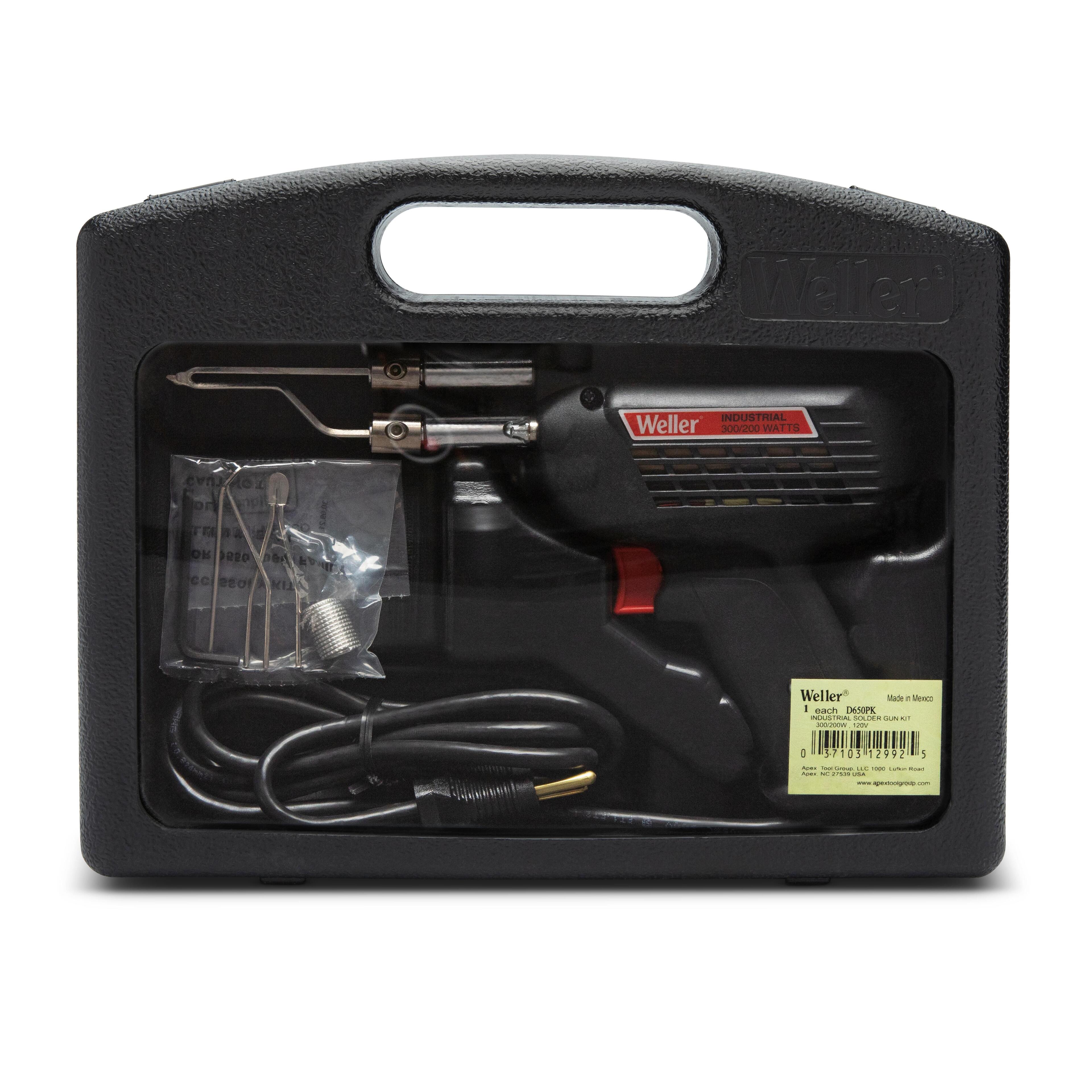

- Included in Kit: Soldering gun, copper tip, storage case
- RoHS Status: Compliant
- REACH Status: Unaffected
- Moisture Sensitivity Level: MSL 1 (Unlimited)
Applications
- Automotive wiring and battery terminals
- Electrical panel work and heavy-gauge wiring
- Industrial maintenance and repair
- Fabrication and metal-to-metal solder joints
