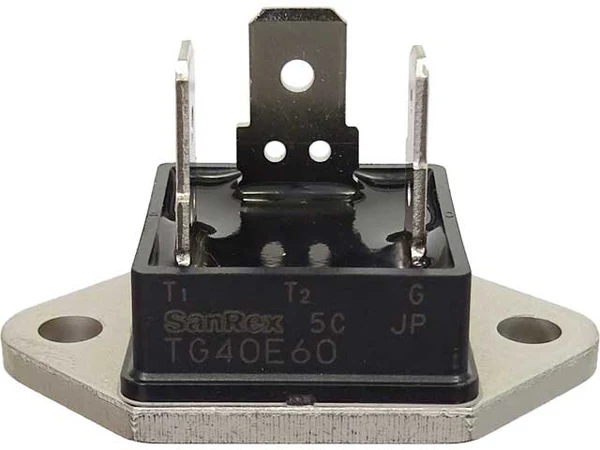

The TG40E60 is a high-power TRIAC designed for AC switching. It handles up to 40 amps of on-state current and blocks up to 600 volts in the off state.
Its TO-3 screw-mount package provides heat dissipation, while the isolated case ensures electrical safety. With a gate trigger voltage of just 1.5 volts and a trigger current of 50 milliamps, it can be easily driven by low-voltage control circuits.Specifications:
- On-state RMS current: 40 A
- Repetitive peak off-state voltage: 600 V
- On-state voltage drop: 1.4 V
- Gate trigger voltage: 1.5 V
- Gate trigger current: 50 mA
- Holding current: 30 mA
- Operating temperature range: –25°C to +125°C
- Package type: TO-3 isolated mold
- Mounting style: Screw mount
- Current - Non Rep. Surge 50, 60Hz (Itsm): 420A @ 60Hz
- RoHS compliance: Yes (with material exemption)
