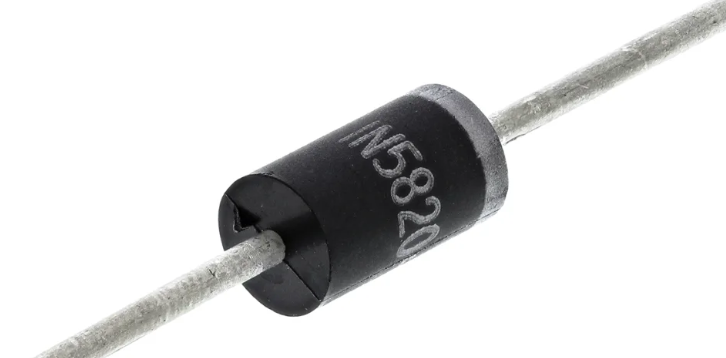

The 1N5820 is a 3 Amp Schottky Diode in a DO-41 package.
| Specifications: | |
| Package / Case | DO-41 |
| Transistor Polarity | Black Color Band Denotes CATHODE |
| Maximum Repetitive Reverse Voltage | 20V |
| Average Forward Current | 3A |
| Maximum Instantaneous Forward Voltage | 0.475V |
| Power Dissipation | 3.6W |
| Maximum DC Reverse Current | 0.5mA |
Schottky diodes are known for their low forward voltage drop and a very fast switching action. This 1A 40V Schottky diode is ideal for use with motor drivers such as the L298N.
