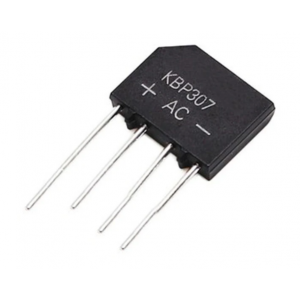

These features make the KBP307 a 3A rated voltage of 700V an ideal choice for a wide range of rectification applications in electronics:
Features:
- PCB Friendly: Specifically designed for use on printed circuit boards, ensuring compatibility with standard PCB mounting techniques.
- Cost-Efficient: Manufactured using a reliable and economical construction method, making it a budget-friendly choice.
- High-Temperature Tolerance: Can withstand soldering temperatures of up to 250°C for 10 seconds under a load of 5 lbs (2.3 kg) tension, ensuring durability during assembly.
- Compact Design: Small size allows for simple and space-efficient installation.
- Solderable Leads: Meets solderability standards of MIL-STD-202, Method 208, ensuring consistent and secure connections.
Maximum Ratings and Electrical Characteristics for KBP307
Conditions: Ratings are specified at 25°C ambient temperature unless otherwise noted. For capacitive loads, the current should be derated by 20%.
Notes:
- Ratings are based on single-phase, half-wave rectification at 60 Hz with resistive or inductive load.
- Derate current by 20% for capacitive loads to ensure proper functionality and prevent overheating.
KPB307 Specs:
- Maximum Recurrent Peak Reverse Voltage: 1000 V
- Maximum RMS Voltage: 700 V
- Maximum DC Blocking Voltage: 1000 V
- Maximum Average Forward Rectified Current @TA = 50°C: 3.0 A
- Peak Forward Surge Current, 8.3 ms Single Half Sine-wave Superimposed on Rated Load (JEDEC method): 80 A
- Maximum Instantaneous Forward Voltage @ 3.14A: 1.1 V
- Maximum DC Reverse Current @ T=25°C: 10 uA
- at Rated DC Blocking Voltage @ T=125°C: 500 uA
- Typical Thermal Resistance: 30.0 °C/w
- Typical Thermal Resistance: 11 °C/w
- Operating Temperature Range: -55 to +150 °C
- Storage Temperature Range: -55 to +150 °C
