The GBJ2510 is a 25A Glass Passivated Bridge Rectifier with high voltage and current capabilities, commonly used in power supply applications. Below are its main features, ratings, and specifications:
Features
- Glass Passivated Die Construction for enhanced reliability.
- High case dielectric strength of 2500 VRMS.
- Low reverse leakage current.
- High surge overload rating of 350A peak.
- Ideal for PCB mounting.
- RoHS Compliant and UL Listed (File Number E94661).

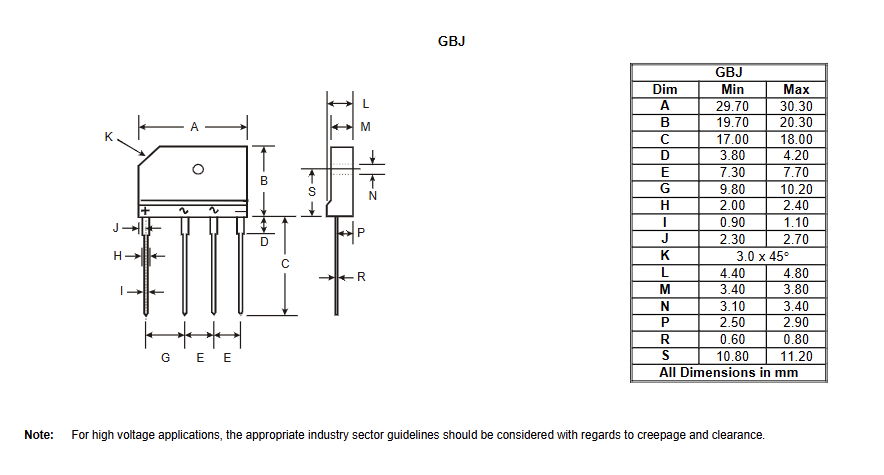

Mechanical Details
- Case: GBJ
- Material: Molded Plastic with UL Flammability Classification 94V-0.
- Polarity: Molded onto the body.
- Mounting: Through-hole for #6 screws, torque rating of 5.0 in-lbs max.
- Weight: Approx. 6.6 grams.
Maximum Ratings (@ 25°C)
- Peak Repetitive Reverse Voltage (VRRM): 1000 V
- RMS Reverse Voltage (VR(RMS)): 700 V
- Average Forward Rectified Current (IO): 25 A (@ TC = 100°C).
- Peak Forward Surge Current (IFSM): 350 A (8.3ms single half sine wave).
- Thermal Resistance (RθJC): 1.0 °C/W.
- Operating Temperature Range: -65°C to +150°C.
Electrical Characteristics (@ 25°C)
- Forward Voltage (VF): 1.05 V @ IF = 12.5 A.
- Peak Reverse Current (IR):
- 10 µA @ TC = 25°C.
- 500 µA @ TC = 125°C.
- Capacitance: 85 pF per element.
Applications
- Power supplies.
- Industrial machinery.
- Motor controls and rectification processes.
