WAVE-26087, Industrial Grade Metal Case (D) for Raspberry Pi 5, Supports Installing Official Cooling Fan And Various HATs, Wall-mount and Rail-mount Support

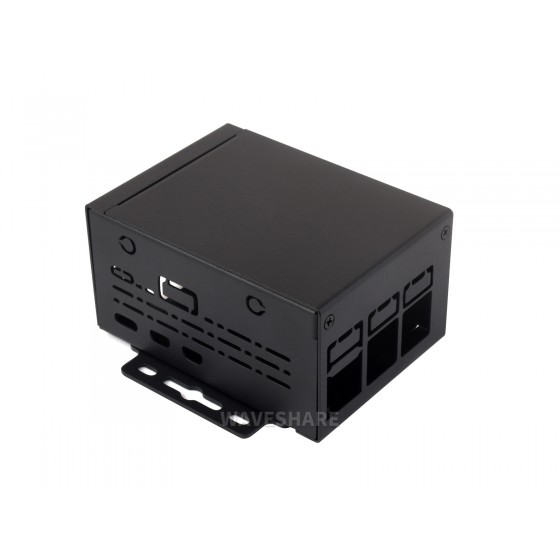

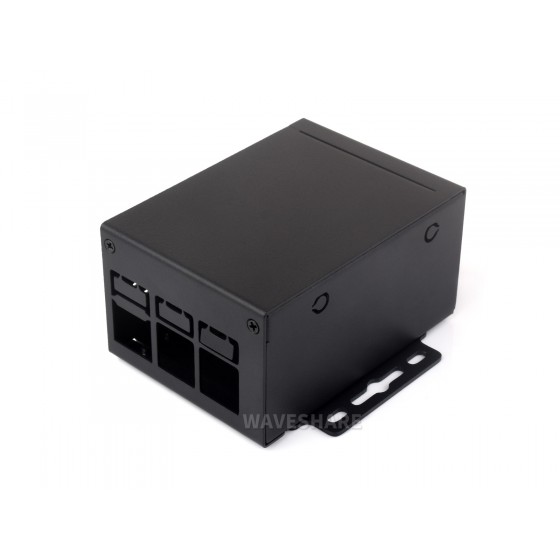

Industrial Metal Case for Raspberry Pi 5
Rail-mount and Wall-mount Support, Larger Internal Space, Supports installing various HATs and Expansion Boards
* for reference only, the Raspberry Pi 5 is NOT included.

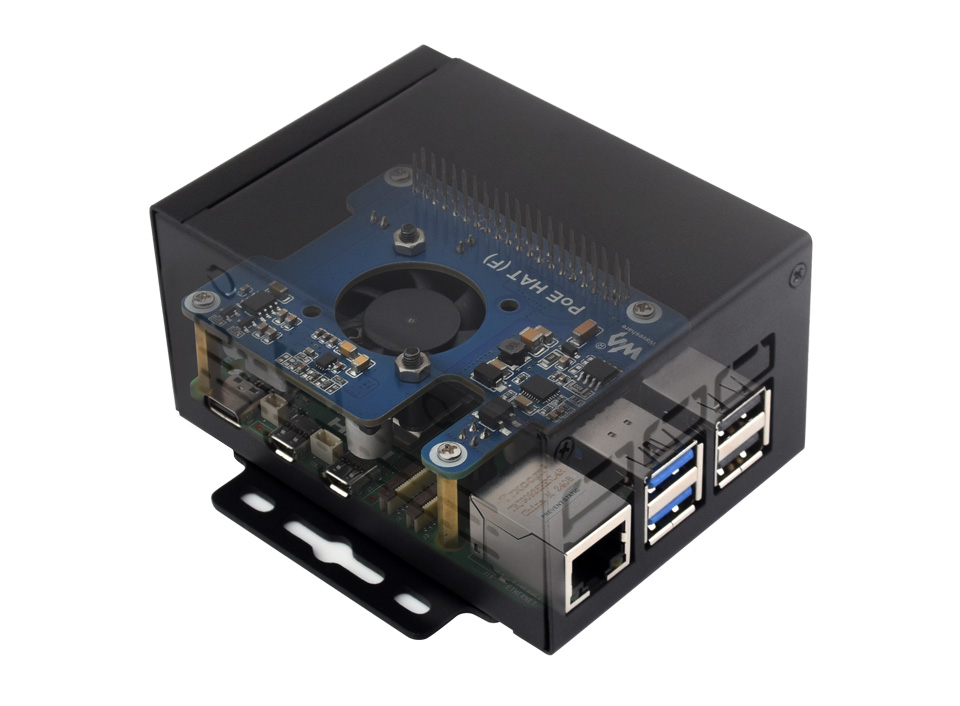

Larger Internal Space
metal case with simple appearance design, Compatible with Most HATs/Modules and Accessories of Raspberry Pi 5

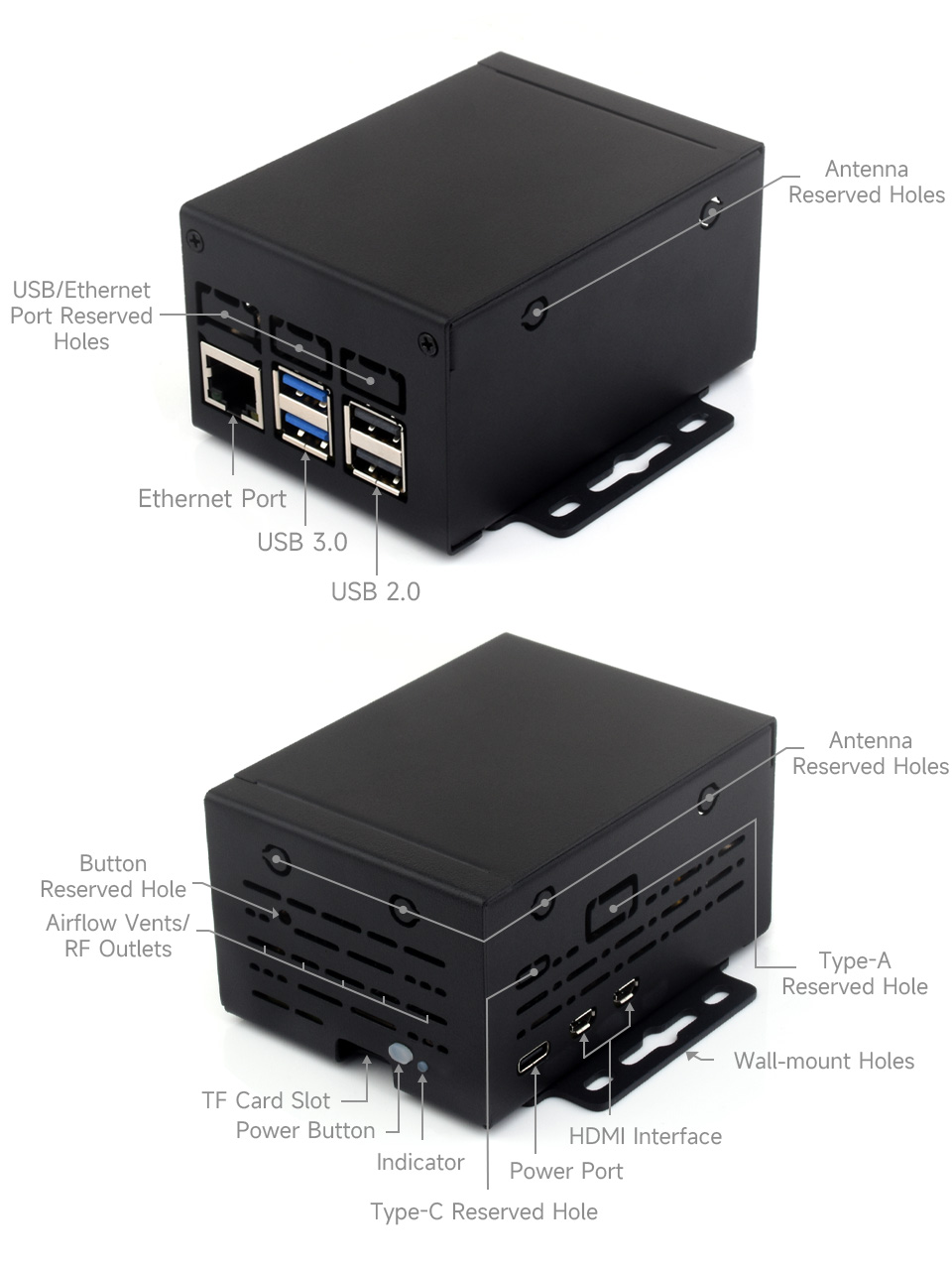

Precise Cut-Out Design
Each Cut-Out Is Completely Aligned With The Interfaces of Raspberry Pi 5, with removable reserved holes. It also has reserved antenna holes and RF outlets to reduce signal attenuation of WiFi and Bluetooth communication
Note: The reserved holes are designed with removable panels. Users can cut them open with needle-nose pliers according to the interface requirements of internal HAT or expansion board.

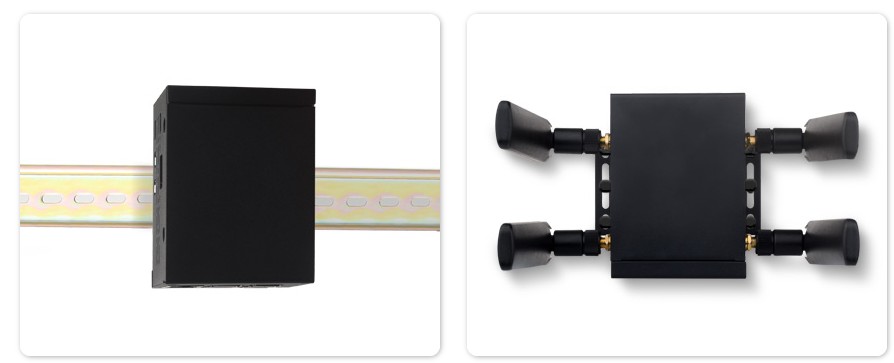

Wall Mount & Rail-mount Support
more flexible for industrial installation and use

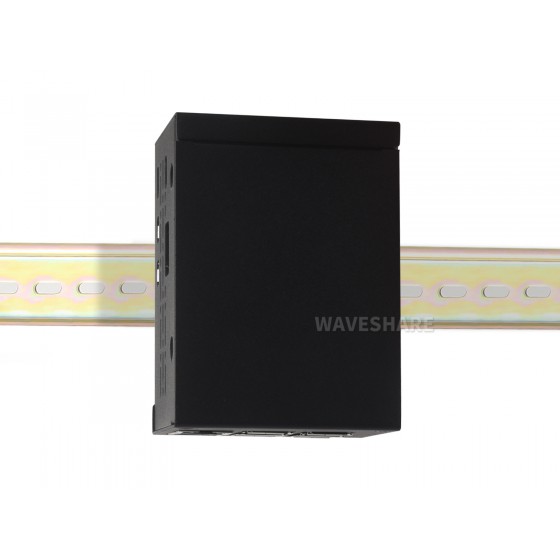

Comes with rail-mount bracket, supports 35mm standard guide rail
Wall-mount installation

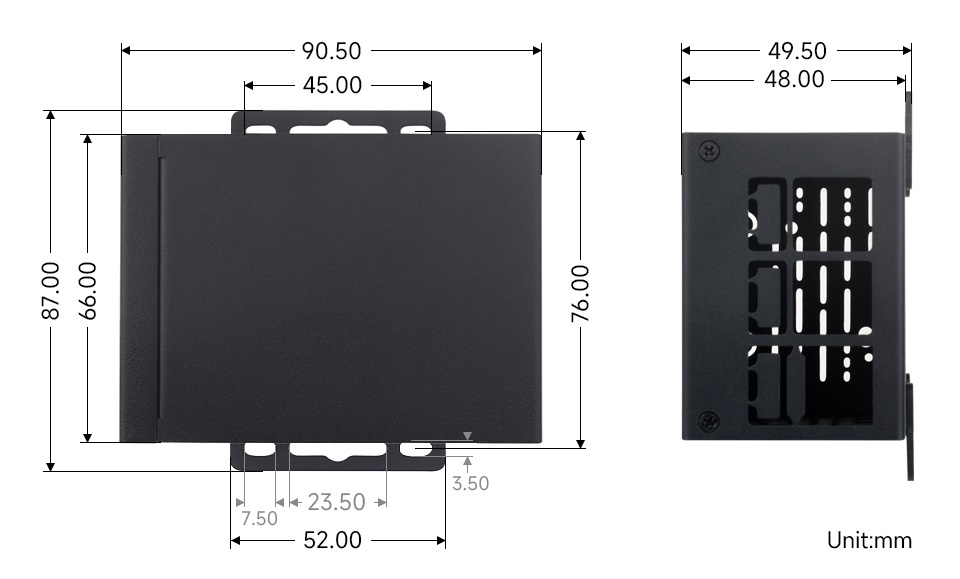

Outline dimensions
