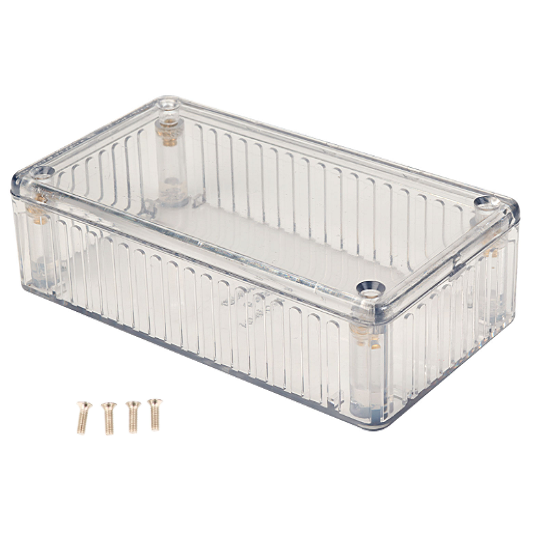

The Hammond 1591BTCL model is a clear polycarbonate enclosure measuring 112x 62x 31 mm., used in mounting circuit boards where critical parts can be displayed visibly.
Features:
Ideally suited for mounting printed circuit boards.
Perfect for applications where parts, sensors, or indicators need to be visible.
Integral card guides accept 1.5 mm (0.062”) PC cards.
Lap joint construction provides protection against dust access and splashing water.
Molded from flame retardant translucent polycarbonate that is easy to machine.
Material
Material Polycarbonate
Color Clear
Flame Rating UL94 V-0
IP Rating IP54

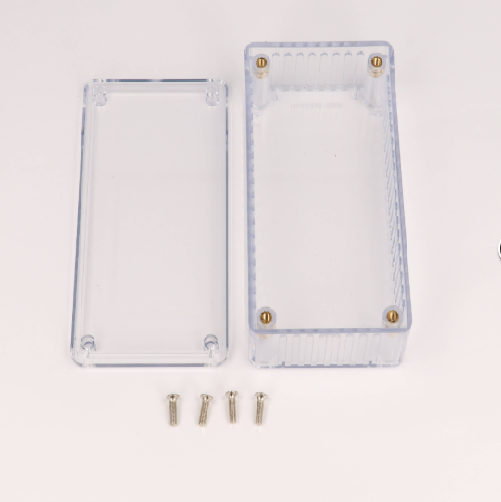

Lid is secured by four M3 x 10 mm Phillips countersunk machine screws for flush fit, and threaded into integral bushings.
Size L x W x H 4.41 in x 2.44 in x 1.21 inches (112 mm x 62 mm x 31 mm)
Shipping Weight 0.16 lbs (0.07 kg)
Packaging Type shrink wrap
Replacement screws order part number: 1591MS100
