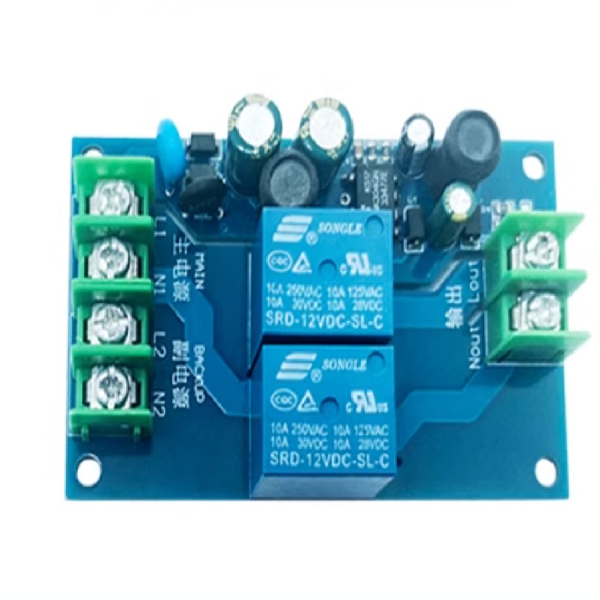

MOD-YX-Q01 2-Way Power Automatic Switching Module YX-Q01, 2-Power Supply AC 85 to 240V, 10A.
OPERATING MECHANISM --- When the main power has no power, the output of this module automatically outputs the second backup power. When the main power is restored, the output is automatically switched to the main power.
CONVENIENT TO USE --- Designed with screw terminals for convenient wire connection. Output voltage is the same as input voltage normally.
Specifications:
Main Power Voltage: 85V~240V AC
Backup Power Voltage: 85V~240V AC
Load current: 10A (MAX)
Working temperature: -25℃~+85℃
Working humidity: 5%~95% RH

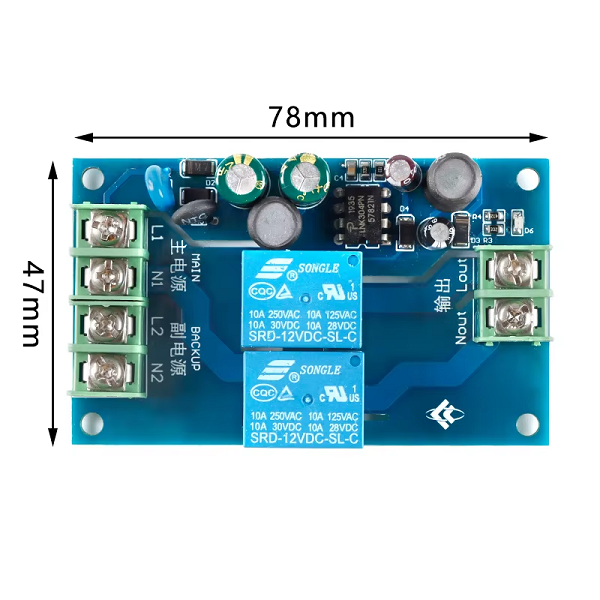

Size: 70*48*18.5mm
Mounting Hold Diameter: 3mm/0.1in
Weight: 44gr. (approx.)
Note
1. When the main power supply is out of power, the module automatically switches to the backup power supply; when the main power supply is restored, the module automatically switches to the main power supply.
2. At the moment of switching, the module is powered off for about ten milliseconds.
3. When the output power supply voltage is normal, it is equal to the input power supply voltage.
