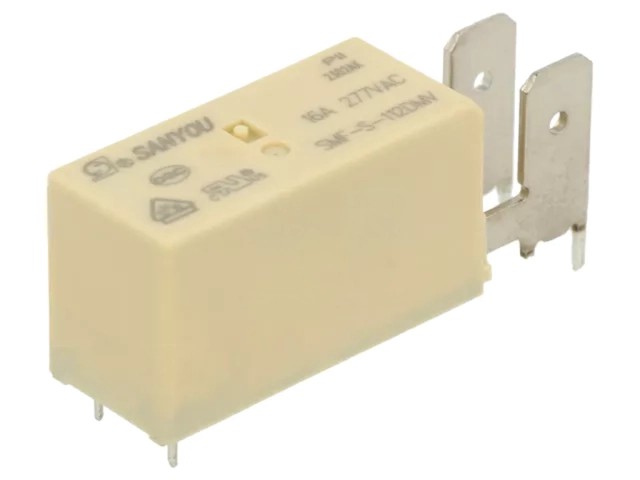

The SANYOU SMF-V miniature power relay is for switching high AC loads. With a 12 V DC coil and a single-pole single-throw normally open (SPST-NO) contact configuration, it can switch up to 16 A at 277 V AC, making it suitable for household appliances, industrial controls, and power supply circuits. Its through-hole mounting design ensures easy PCB integration.
Technical Specifications- Manufacturer: SANYOU
- Series: SMF-V
- Relay Type: Electromagnetic, miniature
- Contact Configuration: SPST-NO (1 Form A)
- Rated Coil Voltage: 12 V DC
- Coil Resistance: 360 Ω
- Coil Voltage Range: 9 V DC (min) – 15.6 V DC (max)
- Coil Power Consumption: 400 mW
- Contact Current (max): 16 A
- Contact Rating: 16 A @ 277 V AC (resistive load)
- Switching Capacity: 4432 VA
- Switched Voltage (max): 277 V AC
- Contact Material: AgNi (Silver Nickel)
- Contact Resistance: ≤100 mΩ
- Mounting: THT (Through-Hole Technology)
- Body Dimensions: 29 × 12.7 × 13.85 mm
- Gross Weight: 14.35 g
- Operating Temperature: -40 °C ~ +85 °C
- Certification: RoHS compliant
