LY2NJ-12V Relay 12VDC 10A DPDT (8 pins)

This is a DPDT 12 volt relay @ 10A with 8 pin solder tabs, mounts on socket R95-121.

• Coil voltage: DC12V
• Coil Power: DC (W): ≤0.9AC (VA): ≤1.2
• Contact Structure: 8 pins 2 normally open 2 normally closed
• Contact capacity: 10A 250VAC
• Pull-in voltage: ≤80% (V)
• Release voltage: DC: ≥10% (V), AC: ≥30%
• Contact resistance: ≤50 (mΩ)
• Insulation resistance: ≤100 (mΩ)

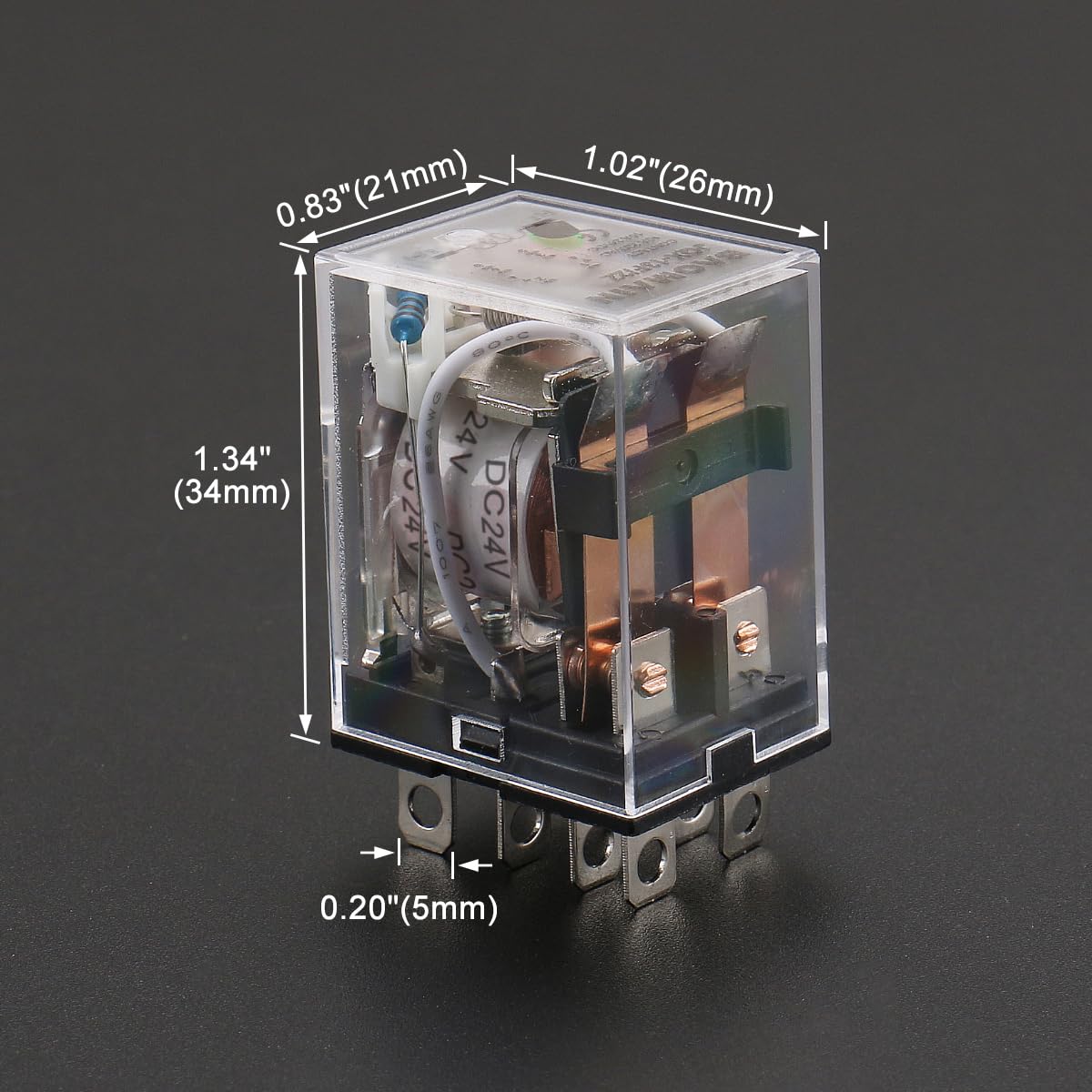

• Dimensions: 27.5 × 21 × 35.3mm
• Terminals form: Socket
• Action time: 20ms or less
• Reset Time: 20ms or less
• Operating frequency:
  • Mechanical 18,000 cycles / hour
  • Electrical 18,000 times / hour
