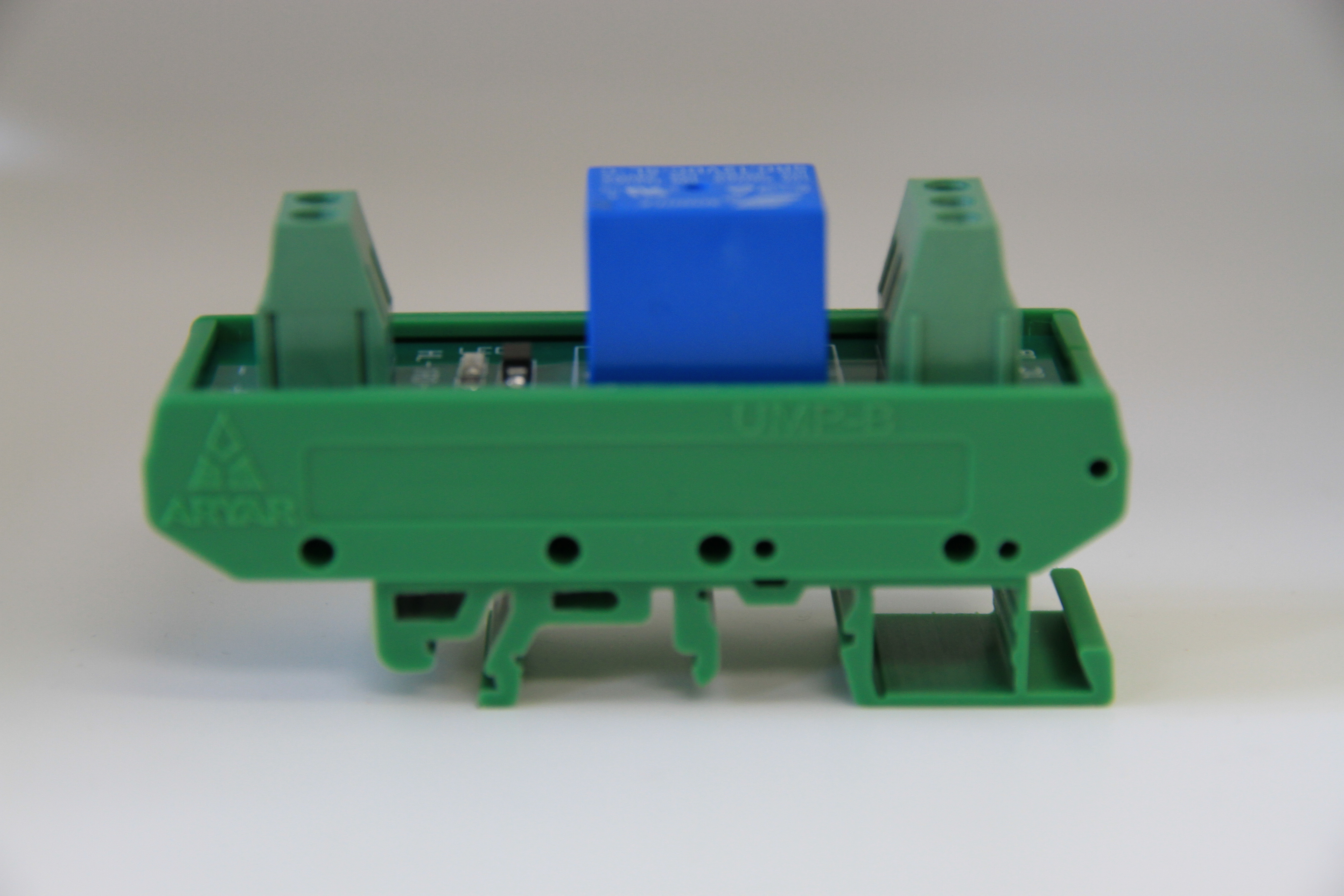

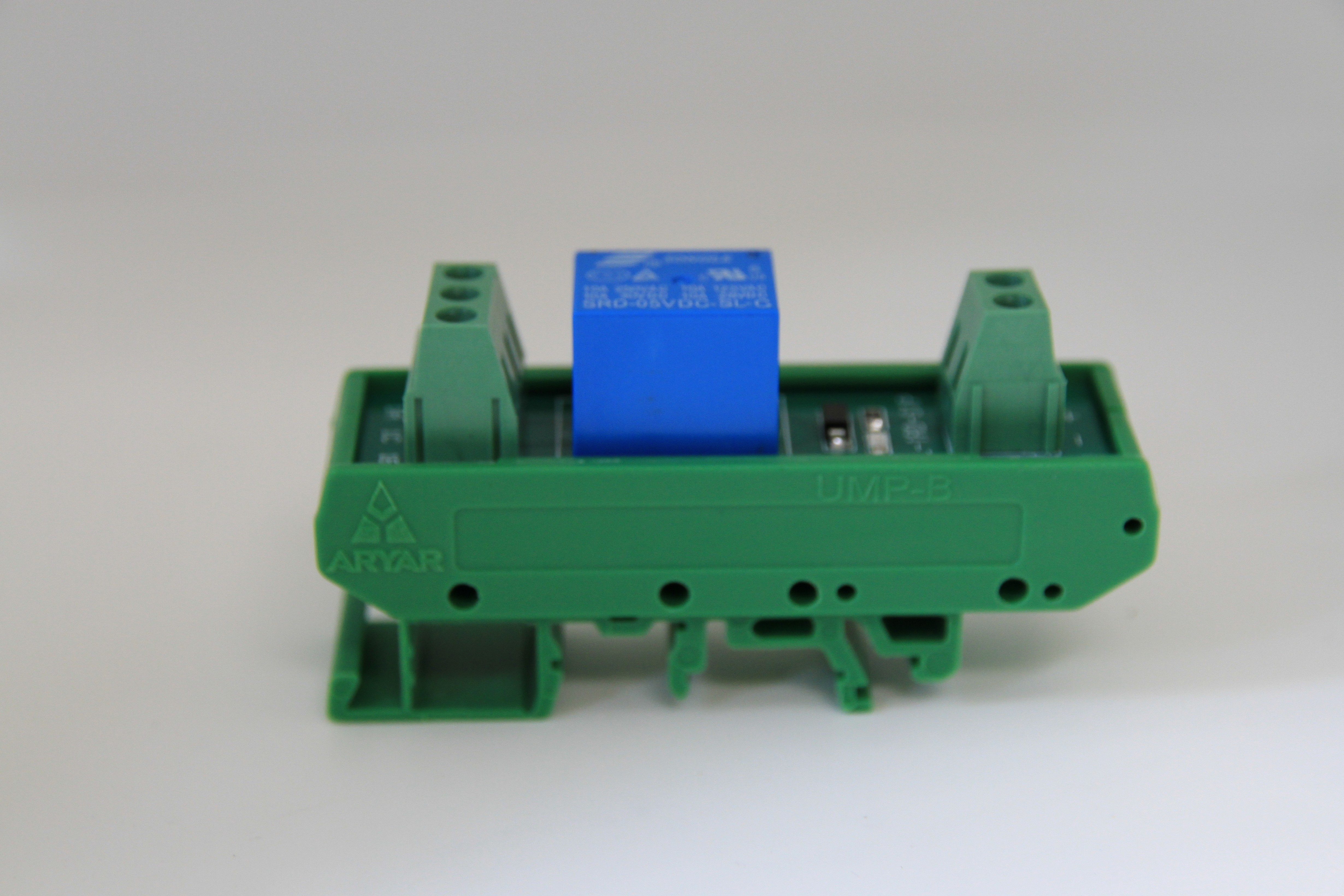

This 5V relay module is designed for switching of AC and DC loads. Compatible with both NPN and PNP signals, and featuring a DIN rail mount. Built with an electromagnetic relay (SRD-5VDC-SL-C).
Specifications:
- Voltage: 5V DC operating voltage
- Relay Type: Electromagnetic (sealed)
- Relay Model: SRD-5VDC-SL-C
- Contact Configuration: SPDT (1 Normally Open + 1 Normally Closed)
- Rated Load:
- 10A @ 250V AC
- 10A @ 30V DC
- Coil Power: 0.36W
- Input Signal: Supports both NPN and PNP signal types
- Output Signal: Common points are independent of each other, allowing isolated control

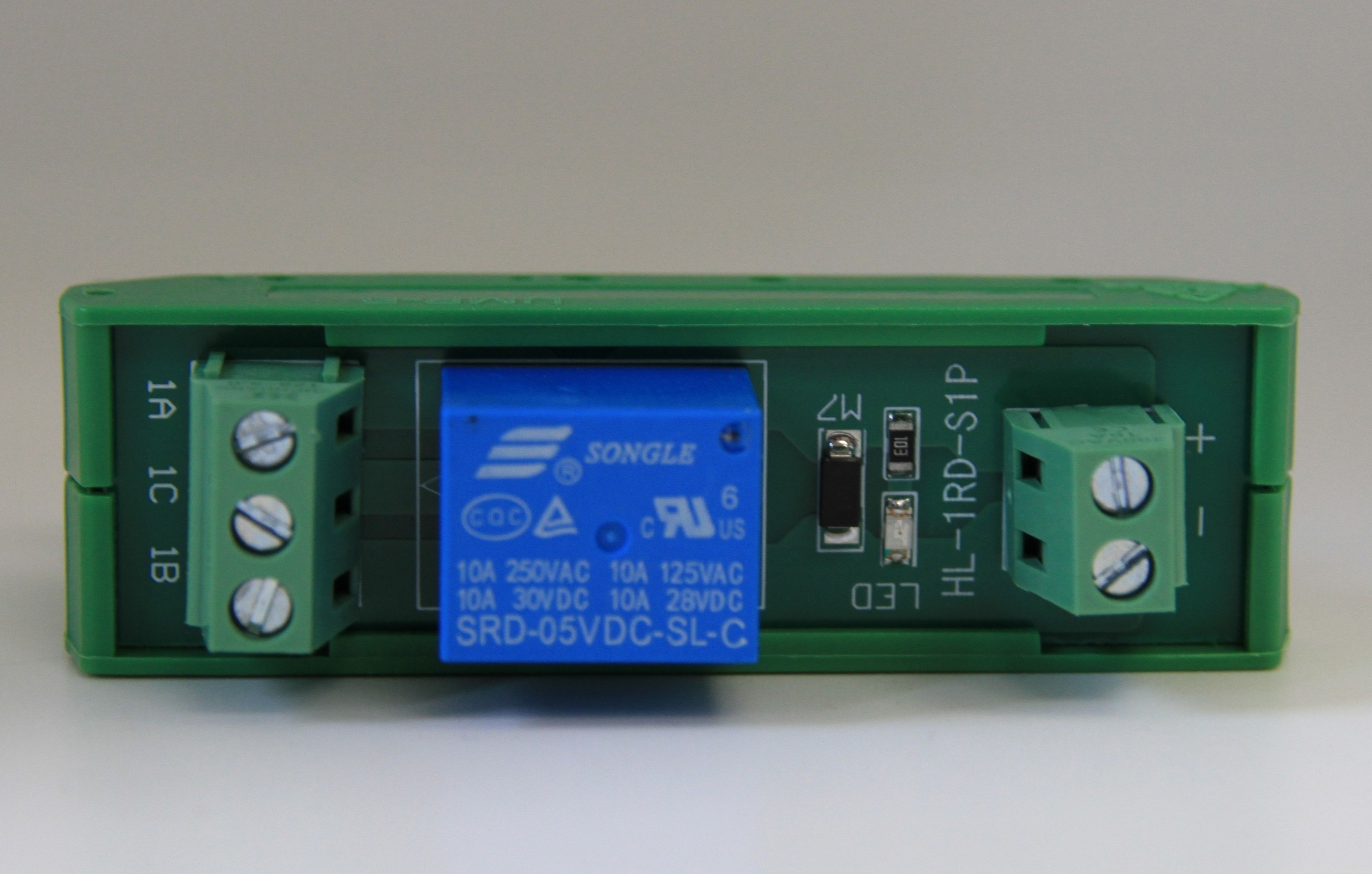

- Wiring Definition:
- Input: One positive (+), one negative (–)
- Output:
- A – Normally Open (NO)
- B – Normally Closed (NC)
- C – Common (COM)
- Mounting Type: DIN Rail
- Protective Features: Sealed relay housing
- Contact Load: Suitable for low-power switching
Package:
- 1 × 5V 1-Channel Relay Module (DIN Rail Mount)
