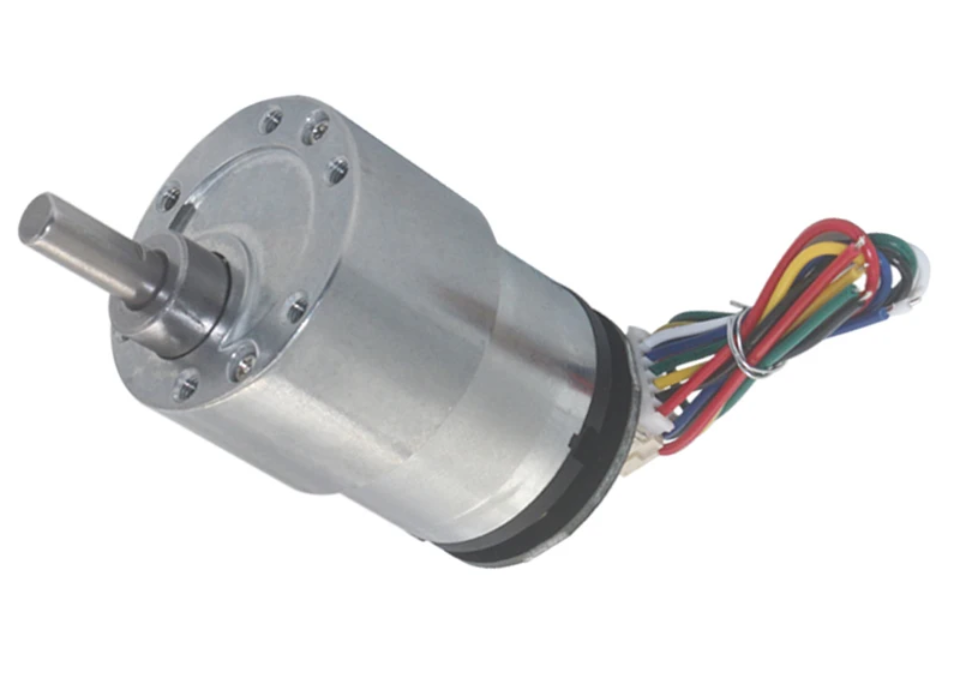

JGB37-520-6V70-E, 6V 70RPM JGB37-520 High Torque Class Geared Motor with Encoder and Wires
This is a normal DC motor with gear reduction that gives it a massive amount of torque at the cost of slowing the maximum rotational speed of the output shaft. It's great for applications where torque is required such as: Opening doors and windows, winches, educational car kits, lifting heavy objects, etc..
| Reduction Ratio | Rated Volt (V) | No Load | AT Load | Stall | Gearbox Length (mm) | ||||
|---|---|---|---|---|---|---|---|---|---|
| Speed (RPM) | Current (mA) | Torque (KG.cm) | Speed (RPM) | Current (A) | Torque (KG.cm) | Current (A) | Torque (KG.cm) | ||
| 6.3 | 6 | 1000 | 70 | 0.4 | 800 | 0.45 | 0.5 | 1.2 | 19 |
| 10 | 6 | 600 | 70 | 0.5 | 500 | 0.45 | 0.8 | 1.2 | 19 |
| 19 | 6 | 300 | 70 | 1.1 | 265 | 0.45 | 1.6 | 1.2 | 22 |
| 30 | 6 | 200 | 70 | 1.7 | 166 | 0.45 | 2.5 | 1.2 | 22 |
| 56 | 6 | 100 | 70 | 3.2 | 90 | 0.45 | 5 | 1.2 | 24 |
| 90 | 6 | 70 | 70 | 5 | 55 | 0.45 | 7.5 | 1.2 | 24 |
| 131 | 6 | 45 | 70 | 7.5 | 38 | 0.45 | 10 | 1.2 | 26.5 |
| 270 | 6 | 20 | 70 | 15 | 13 | 0.45 | 20 | 1.2 | 28 |
| 10 | 12 | 1000 | 120 | 1 | 770 | 0.45 | 1.6 | 2.3 | 19 |
| 19 | 12 | 530 | 120 | 2.2 | 407 | 0.45 | 3.1 | 2.3 | 22 |
| 30 | 12 | 333 | 120 | 3.5 | 250 | 0.45 | 5 | 2.3 | 22 |
| 56 | 12 | 178 | 120 | 6.5 | 105 | 0.45 | 10 | 2.3 | 24 |
| 90 | 12 | 110 | 120 | 10 | 85 | 0.45 | 15 | 2.3 | 24 |
| 168 | 12 | 60 | 120 | 17 | 47 | 0.45 | 25 | 2.3 | 26.5 |
| 270 | 12 | 37 | 120 | 30 | 28 | 0.45 | 31 | 2.3 | 28 |
