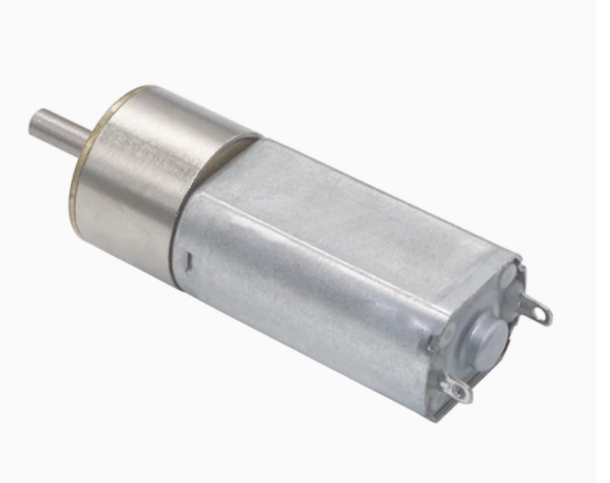

JGA16-050-6V47, 6V 47RPM JGA16-050 DC Speed Reduction Gear Motor
| Motor Model | JGA16-050 |
|---|---|
| Shaft Diameter | 3mm |
| Rated Voltage | 6V DC |
| No Load Speed | 12rpm – 923rpm |
| No Load Current | 0.05A |
| Power | 0.6W |
| Max Torque | 5.0kg.cm |
| Rotation | CW / CCW |
| Weight | appr. 30g |
| Ratio | No Load | Rated Load | Stall | ||||
|---|---|---|---|---|---|---|---|
| i : 1 | Speed | Current | Speed | Current | Torque | Torque | Current |
| 13:1 | 923rpm | 0.09A | 692rpm | 0.40A | 0.15kg.cm | 0.37kg.cm | 2A |
| 16:1 | 750rpm | 0.09A | 562rpm | 0.40A | 0.19kg.cm | 0.46kg.cm | 2A |
| 25:1 | 480rpm | 0.09A | 360rpm | 0.40A | 0.26kg.cm | 0.65kg.cm | 2A |
| 35.7:1 | 336rpm | 0.09A | 240rpm | 0.40A | 0.38kg.cm | 0.92kg.cm | 2A |
| 50.7:1 | 240rpm | 0.09A | 180rpm | 0.40A | 0.49kg.cm | 1.10kg.cm | 2A |
| 63:1 | 190rpm | 0.09A | 142rpm | 0.40A | 0.61kg.cm | 1.40kg.cm | 2A |
| 72:1 | 166rpm | 0.09A | 125rpm | 0.40A | 0.70kg.cm | 1.60kg.cm | 2A |
| 100:1 | 120rpm | 0.09A | 90rpm | 0.40A | 0.97kg.cm | 2.30kg.cm | 2A |
| 143:1 | 83rpm | 0.09A | 62rpm | 0.40A | 1.25kg.cm | 3.00kg.cm | 2A |
| 201:1 | 60rpm | 0.09A | 45rpm | 0.40A | 1.75kg.cm | 4.20kg.cm | 2A |
| 252:1 | 47rpm | 0.09A | 33rpm | 0.40A | 2.20kg.cm | 5.30kg.cm | 2A |
| 355:1 | 34rpm | 0.09A | 23rpm | 0.40A | 2.81kg.cm | 6.80kg.cm | 2A |
| 568:1 | 21rpm | 0.09A | 14rpm | 0.40A | 4.49kg.cm | 10.90kg.cm | 2A |
| 1,000:1 | 12rpm | 0.09A | 8rpm | 0.40A | 5.00kg.cm | 19.20kg.cm | 2A |
