MOT-ACT100 12VDC 100mm Stroke 500N 20MM/s Aluminum Shaft Linear Actuator

Price:
US$64.95
MOT-ACT100
In stock
+
Add to wish list

12VDC 100mm Stroke 500N 20MM/s Aluminum Shaft Linear Actuator

This device is a heavy duty actuator that is capable of extending/retracting its arm with high amount of torque. It is powered via a large and powerful 12 VDC geared motor that allows for its arm to move back and forth. It can be used to open doors, windows, lift objects etc.

Note: This actuator has a safety feature that prevents the arm from moving any further when reaching maximum or minimum length to prevent damaging the gears. Inverting the polarity allows you to change directions.

Specifications

  • Material: Aluminum alloy
  • Color: Silver
  • Input Voltage: 12 VDC
  • Max Push Load: 500 N
  • Stroke length: 100 mm
  • Speed: 20 mm/s
  • Operating frequency: 20%
  • Diameter of mounting holes: 6mm/0.24"
  • Size(L X W): 21.5x7.4 cm
  • Arm hole diameter: 6.8 mm
  • Weight: approx. 2 lbs.

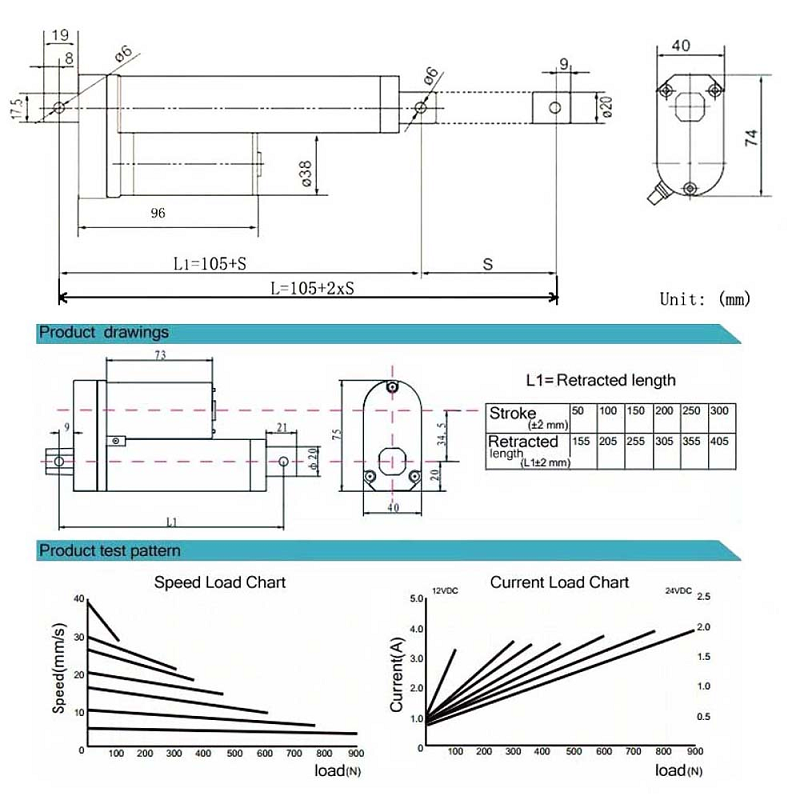

Fiche Technique - Data sheet (a_Untitled.png, 350 Kb) [Download]
