Suitable for use in voice recognition systems, audio monitoring, and compact electronic devices requiring sensitive audio components.
Key Features:

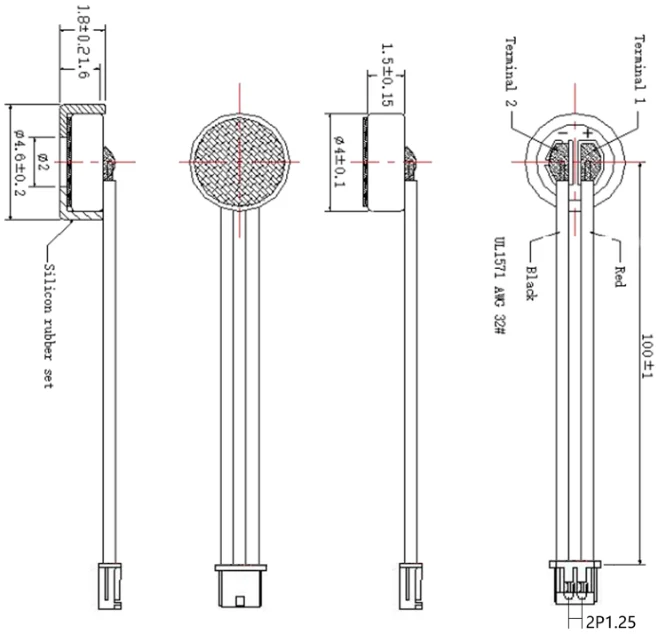

- Compact Design: Back electret microphone in a compact 4015 form factor.
- Omni-Directional Sound Capture: Ensures high-quality audio detection from all directions.
- Sensitivity: Rated at -42 ± 3 dB for precise sound responsiveness.
- Electrical Specifications:
- Operating Impedance: 2.2 kΩ.
- Voltage Range: 1–10V DC, with a standard power supply of 2.0V.
- Low Power Draw: Maximum current consumption of 0.5 mA.
- Wide Frequency Range: 50–16,000 Hz for comprehensive audio coverage.
- High S/N Ratio: Over 58 dB for minimal interference and clear signal quality.
- Max Sound Handling: Capable of handling up to 110 dB SPL.

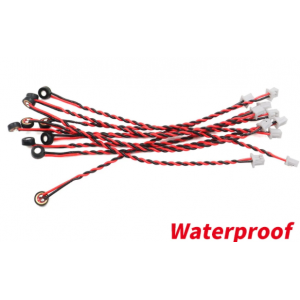

- Easy Integration: Equipped with a GH1.25 terminal wire for quick and reliable connectivity.
