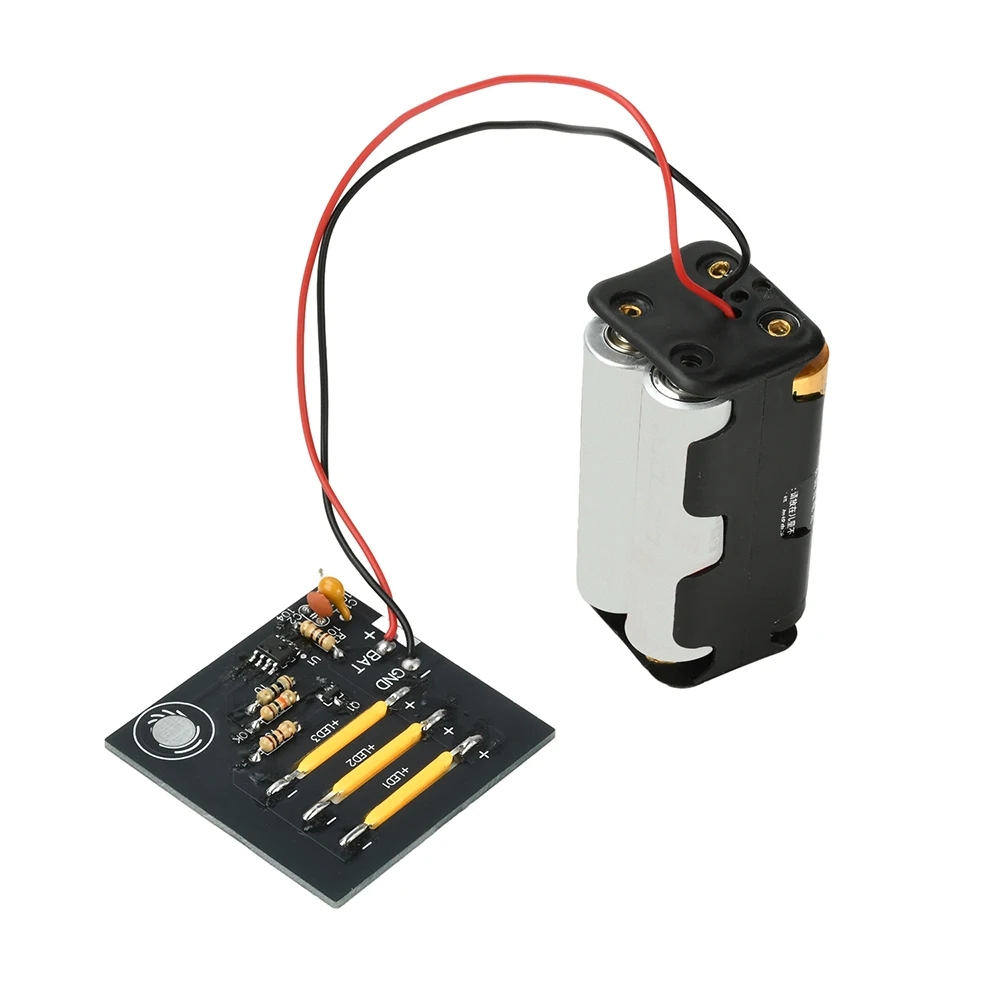

AK-68, Touch Stepless Dimming Electronic Soldering Kit
This module features a safe DC 6V power supply for reliable, worry-free use and offers touch-sensitive stepless dimming that allows you to easily adjust brightness to your preference. With a simple and intuitive long-press operation to brighten or dim the light, it delivers stable performance, high sensitivity, and a long service life. Its compact circuit board design makes it easy to assemble and an excellent choice for a wide range of DIY projects.
Specifications:
Power Supply Voltage: DC 6V
PCB Size: 45x45x3 mm
Power Supply: AA batteries x4 (not included)
LEDs (note the positive and negative terminals have holes for positive): x3
Transistor 2300A: x1
Resistor 100Ω: x2
Resistor 10K: x1
Resistor 10Ω: x1
Capacitor 106: x1
Capacitor 104: x1
Chip: x1
PCB: x1
Schematic:
Note: This kit uses surface-mount (SMT) components. Proper assembly may require specialized equipment such as a reflow oven or furnace, and it is intended for users familiar with SMT soldering techniques.
