TheĀ EF08239 is a kit based around the Micro:bit that comes with all sorts of components and pieces to build any of the 20 designs provided, but don't let this fool you. The components can be arranged in practically any way you want for whatever ideas you have. The sky is the limit!
Micro:bit Wonder Building Kit focuses on the bricks expansions with 20 projects available in our WIKI, and it gives you more chances to create more projects. Packed with different electronic sensors such as the line-following sensor, the Sonar:bit and the Water level sensor, they enrich the projects with more challenge and fun.
Specifications
- Sensors: Water level sensor, line-following sensor, Sonar:bit
- Bricks: Over 400pcs
- Controllers: micro:bit & Wukong expansion board
- Communication: USB port
- Size: 250 x 190 x 100mm
- Weight: 1150g
- Motor drive: 2 ways(M1, M2)
- Servo drive: 8 ways(S0~S7)

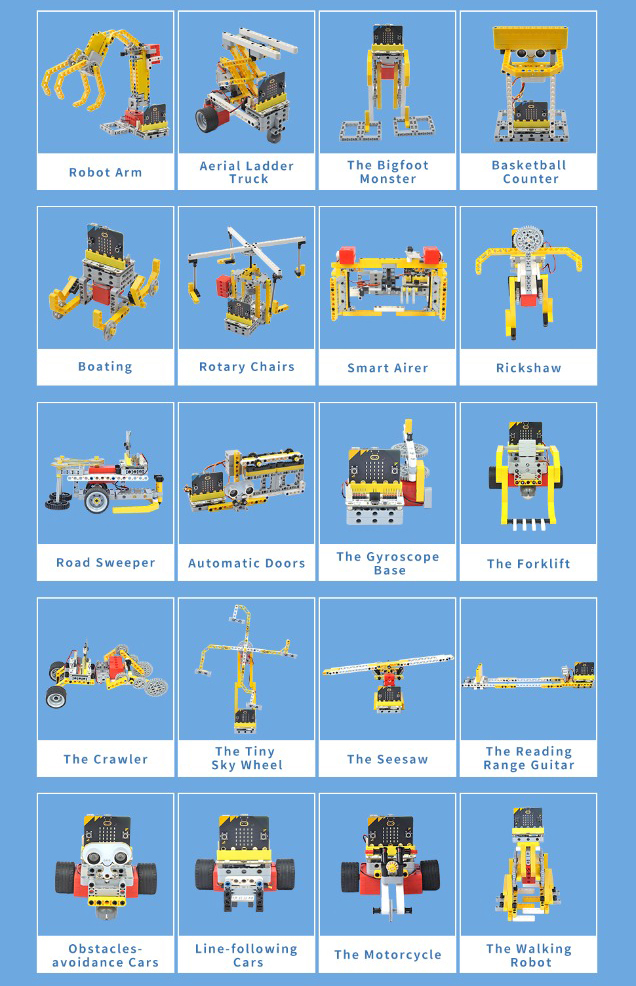

- Projects: 20 projects are provided
Wukong Expansion Board
Wukong is a highly integrated breakout board with multiple functions based on micro:bit, which has a similar size with the micro:bit with buzzer, servo and motor drivers onboard
- Tiny shape with high integration
- Standard Lego bricks connection
- Most of the IO ports led out in GVS form
- Standalone IIC pots, available for OLED and BME280.
- Integrated buzzer and switch
- Integrated motor-drive circuit
- Integrated servo-drive circuit
- Support 5V sensors
- Built-in 400mAh Li-ion battery pack, onboard power controlling system, four LEDs indicate the power storage
- Support fast charge

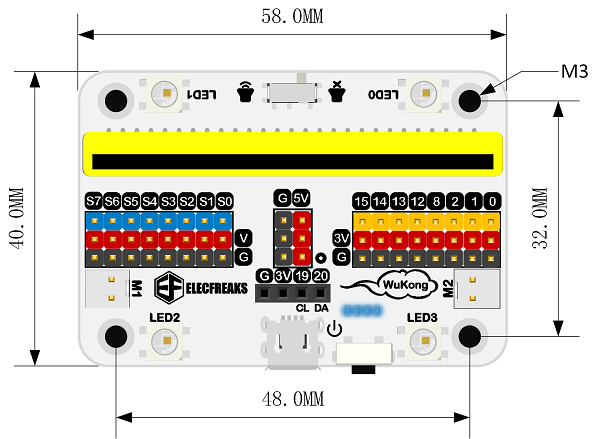

Wukong Expansion Board (Parameters)
| Parameter | Detail | Instruction | Note |
|---|---|---|---|
| Item No. | EF08207 | SKU | - |
| Size | 40.00 X 58.12 X 24.53 mm | Including Lego baseboard without micro:bit | Manual measure, size in kind prevail |
| Weight | 41.6g | Including Lego baseboard and the battery | Manual measure, weight in kind prevail |
| Power Switch | Click to turn on, double to turn off | Four LEDs indicate the power storage, support fast charge | Power supply by the USB connection onboard is supported |
| Battery | 400mAh Li-ion battery pack | 20 minutes for completing the charge that can operate for more than 40 minutes a time | Anti-explosion |
| Working Voltage | 3.7v~5v | Li-ion battery pack 3.7vļ¼USB 5v | - |
| Working Temperature | -20ā~60ā | Charge temperature 0ā~40ā | - |
| Motor Drive | Dual (M1ļ¼M2) | Motor drive circuit onboard | - |
| Servo Drive | Eight ways servo connection (S0~S7) | Servo drive circuit onboard | - |
| IO Port Lead Out | P0ćP1ćP2ćP8ćP12ćP13ćP14ćP15ćIIC | Support 3V&5V modules | GVS |
| Rainbow LED | LED0ćLED1ćLED2ćLED3 | Available for RainbowLED database | Connect to micro:bit P16 port |
| Buzzer | Passive buzzer with a switch on board | Available for music database | Connect to micro:bit P0 port |
| LED | 8 LEDs can be programmed on the base side | Light on, twinkle, breathing light | The LED twinkles when power on |

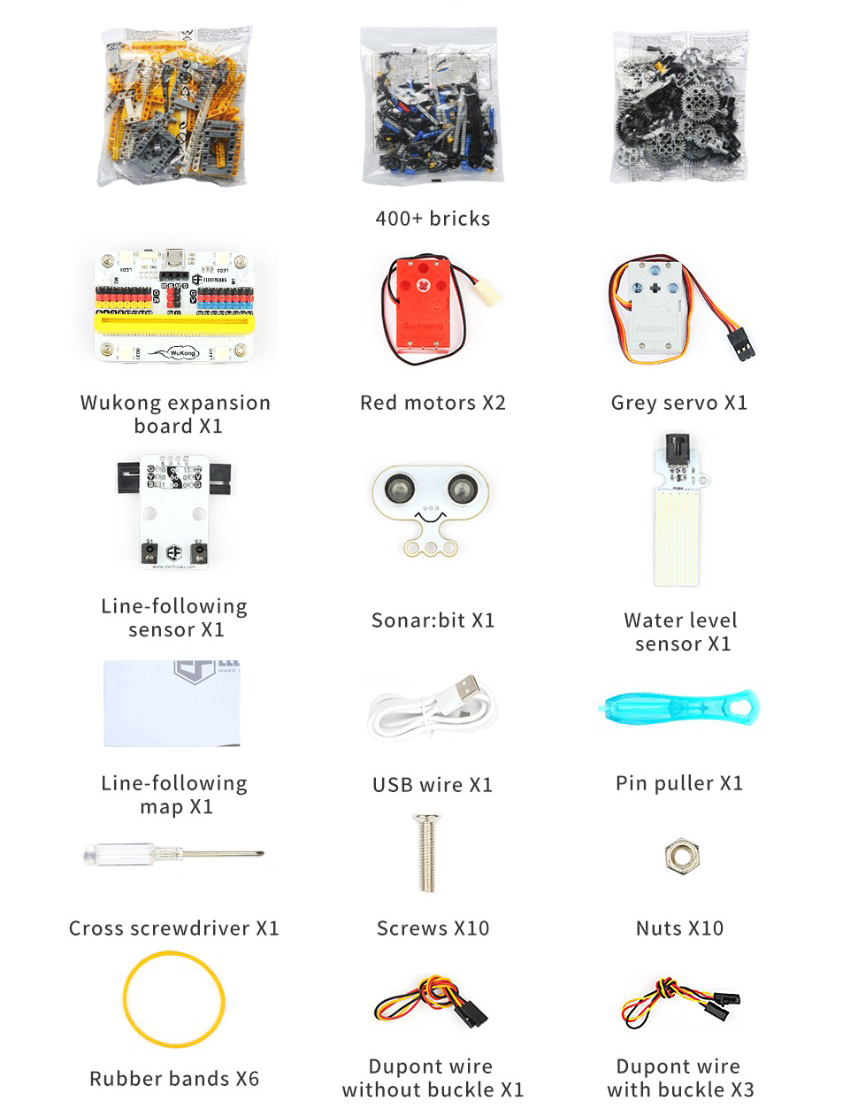

Shipping List
