AK-85 D.I.Y 30 Watt TDA2030A Stereo Amplifier Kit (15W +15W)

Price:
US$20.93
AK-85
In stock
+
Add to wish list

D.I.Y 30 Watt TDA2030A Stereo Amplifier Kit (15W +15W)

Build your own amplifier board that can control the bass, treble and volume! Works great with 4 to 8 ohm impedance speakers. Tested with our 5 watt speaker (see related products below). All you need is a transformer, some 3.55mm audio source input and your speakers for the output. A rough estimate of 30 minutes soldering work is required to construct this kit. The two channels can deliver a max of 15 Watts thanks to the beefy heatsink. If you are looking for a preassembled and straight out the box functionality please look for “MOD-AMP”.

Specifications:

12 volts

30 Watts

Dimension: 75mm x 90mm

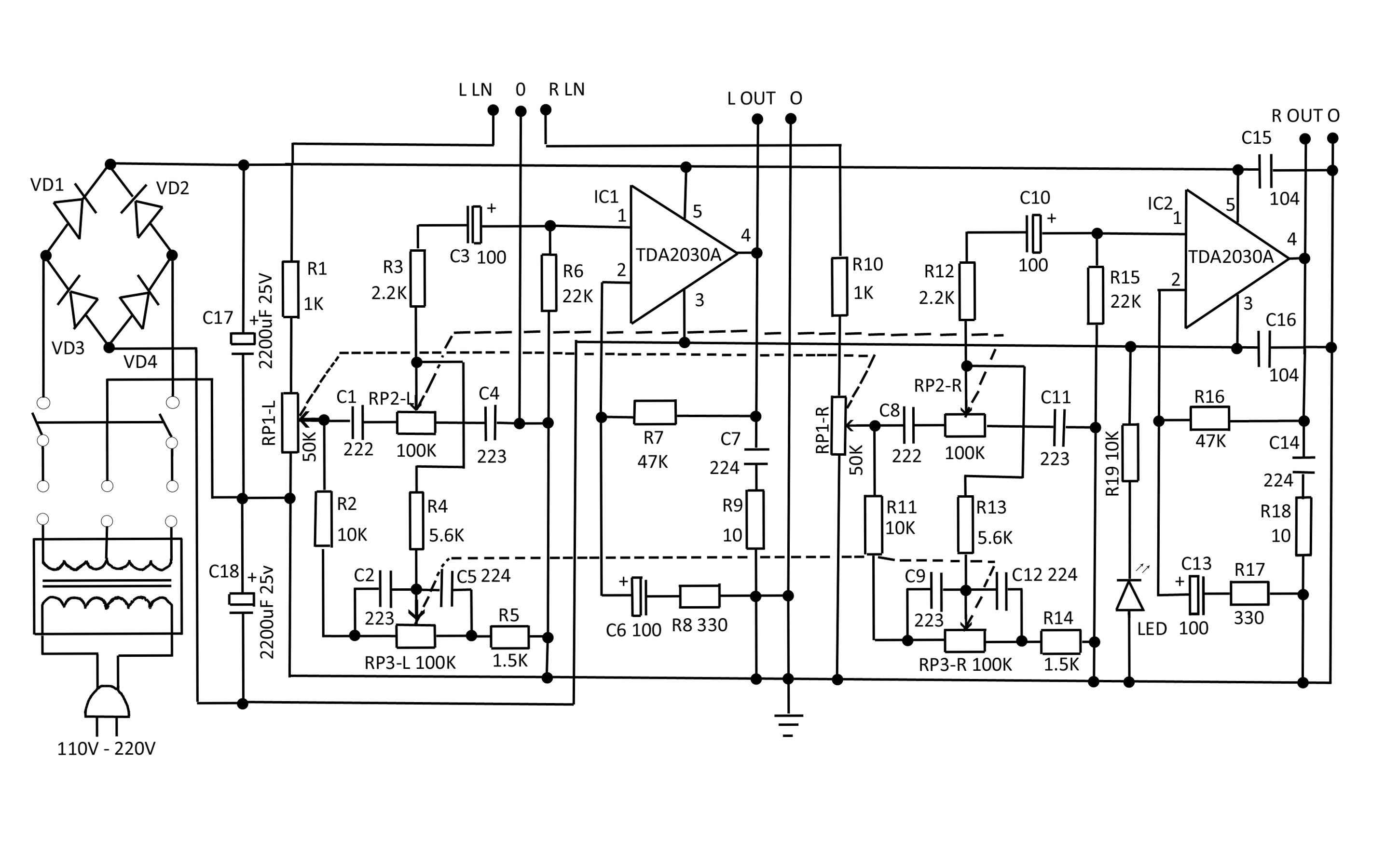

AK-85 Schematic (ak-85schematic.jpg, 488 Kb) [Download]

AK-85 Manual (ak-85_Manual_(1).pdf, 416 Kb) [Download]
