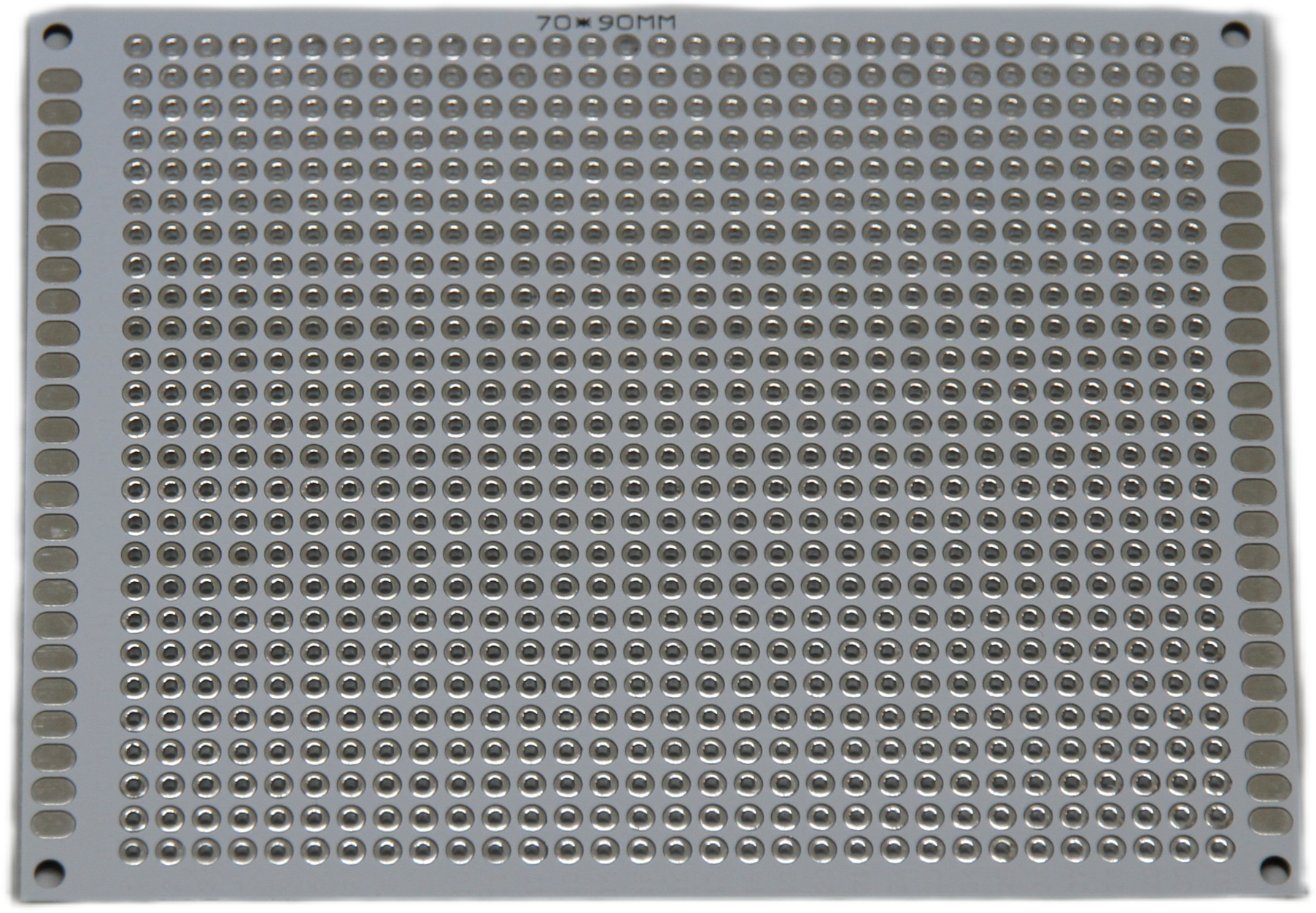

BRD-7X9-DS-WH, White 7cm x 9cm Universal Prototype PCB Experimental Double-Sided Circuit Board, 806 Solder Holes
This is a pre-drilled double-sided FR4 Epoxy Glass protoboard featuring silver holes spaced 0.1 inches (2.54mm). It is ideal for IC project prototyping and soldering practice. None of the board's holes are interconnected, giving you complete freedom in positioning components. Mounting holes are also drilled for attaching the board to standoffs, cases, or other hardware.
Dimensions: 2 3/4" x 3 1/2" || 7cm x 9cm
Thickness: 0,047" || 1.2mm
Plating: Plated Through Hole (PTH)
Bonding Pad Diameter: 2mm || 0.08in
Hole Diameter: 1mm || 0.04in
Material: FR4 Epoxy Glass
Pads/Holes 31x26: 806 total (solder pads are not interconnected)
Number of solder fingers: 24 x 2: 48
Mounting holes: 4 x size 2mm
Lettering printed for easy reference of individual row of holes.
