OB-480 Solid V Wheel Kit

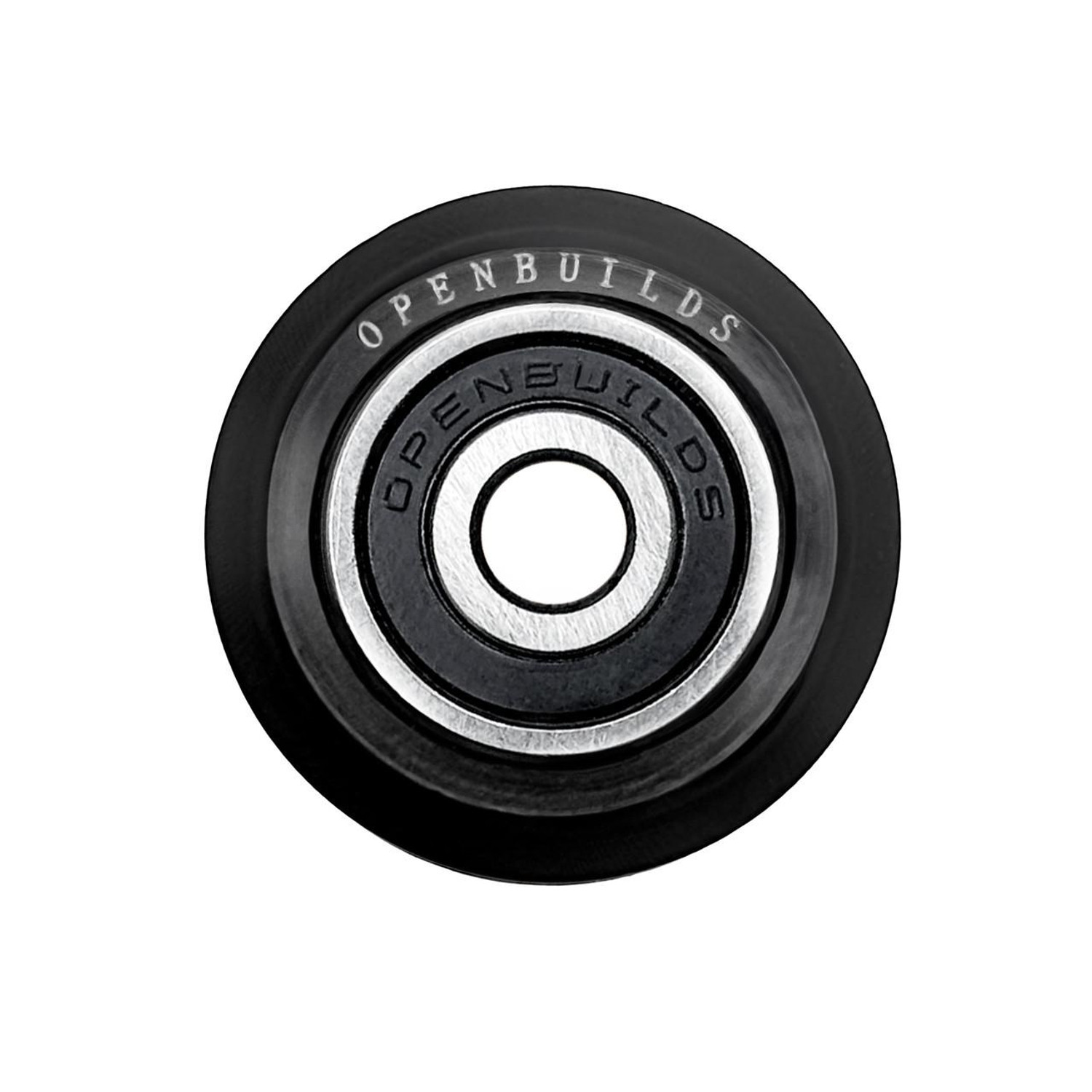

The OpenBuilds Solid V Wheel is a strong wheel that resists deflection due to it's solid nature.

This wheel style was produced for two reasons:
- First is for builds where heavier loads are required and less compression in the delrin is desired. Many of these wheels could be added to a gantry to allow an even distribution of the load across them.
- Second is for improved performance of the belt and pinion system to give the belt a flat surface to ride on.

 "The OpenBuilds Solid V Wheel Kit is great for use with the V-Slot Linear Guide System!"

 Product Details

  • Qty. 1 Kit
  • Rockwell Hardness: M80
  • Compression Strength: 63MPA
  • OD: 23.90mm
  • ID: 16mm
  • Thickness: 10.23mm
  • Material: Delrin
  • Color: Black

Each Wheel Kit Includes:

  • (1) OpenBuilds Solid V Wheel
  • (2) Ball Bearings - 625 RS
  • (2) 5mm Precision Shims
  • (1) M5 Nylon Lock Nut

Silicone lubrication is a great option for these Delrin wheels!

OpenBuilds Part CAD Models and Drawings
