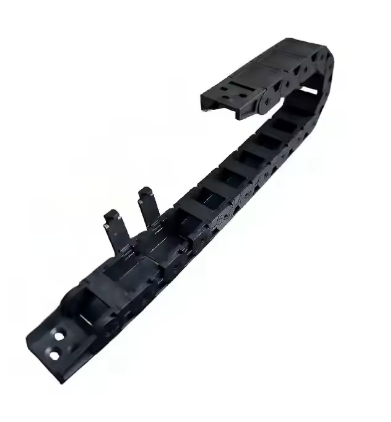

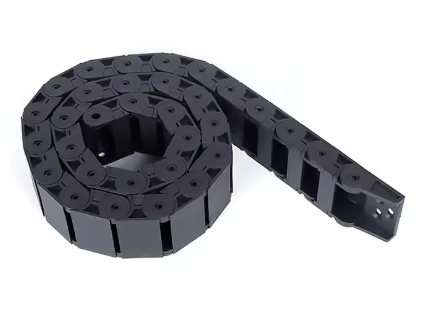

This cable drag chain is designed for bunching and guiding wires so they can safely follow along when dragged by a motor or belt. Excellent for any linear axis of movement where you need to protect and organize cables.
Ideal for: CNC machines, 3D printers, automation systems, and other motion equipment requiring neat, reliable cable routing.
Specifications:
- Inner Size (H×W): 18×25 mm
- Outer Size (H×W): 23×25 mm
- Bending Radius (R): 38 mm
- Pitch: 33 mm
- Length: 1 meter
- Type: Inner side openable for easy wire installation
Features:
- Strong structural design — not easily broken
- Long service life and high load-bearing capacity
- Resistant to both high and low temperatures
- Smooth, low-friction motion
