ROCK3 RK3568, 4GB RAM, 32GB Flash,Wireless, Model A, Credit Card Sized Computer SBC

Manufacturer: Radxa
Price:
US$159.20
WAVE-21955
Delivery within 1-2 weeks
+ −
Add to wish list

The WAVE-21955 is a small computer based around the RK3568. It features, 4GB of Ram, 32GB of Flash memory and wireless support!

As a compact and powerful AI development board, ROCK3 Model A features quad-core 64-bit Cortex-A55, ARM G52 GPU, NPU, supports AI frameworks such as OpenGL, provides 4GB Ram, 32GB flash and wireless module.

Specifications

  • PROCESSOR: Rockchip RK3568 quad-core Cortex-A55 (64-bit SoC @ 2.0GHz)
  • GPU: ARM G52 2EE
  • NPU: 0.8TOPS performance
  • MULTIMEDIA: 4K 60fps H.265/H.264/VP9 video decode; 1080P 60fps H.265/H.264 video encode
  • MEMORY: 4GB LPDDR4-3200 SDRAM
  • STORAGE:
    • eMMC (32GB)
    • μSD card (μSD card slot, max 128GB μSD card)
    • M.2 SSD
  • CONNECTIVITY:
    • Wireless Module A1 module, with 2.4G WIFI and 4.2 Bluetooth support
    • Gigabit Ethernet support
  • USB: USB 2.0 × 2; USB 3.0 × 1; USB3.0 OTG × 1 (configurable Host/Device modes)
  • IO:
    • 40-PIN header
    • 5 × UART
    • 1 × SPI
    • 2 × I2C
    • 6 × PWM
    • 1 × ADC
    • 1 × CAN
    • 6 × GPIO
  • VIDEO:
    • HDMI port (supports 4K*2K@60)
    • 2-lane MIPI DSI display port
    • 2-lane MIPI CSI camera port
  • AUDIO: 3.5mm audio jack; HD encode, supports up to 14-bit/96KHz audio
  • OTHER:
    • RTC
    • RTC backup power interface
  • VOLTAGE LEVEL:
    • PD quick charge power supply: Type C PD2.0, 9V/2A, 12V/2A, 15V/2A, 20V/2A;
    • Qualcomm® QC quick charge power supply: supports QC 3.0/2.0 power, 9V/2A, 12V/1.5A;
    • DC power supply: 5 ~ 21V
  • DIMENSIONS: 85 × 56mm

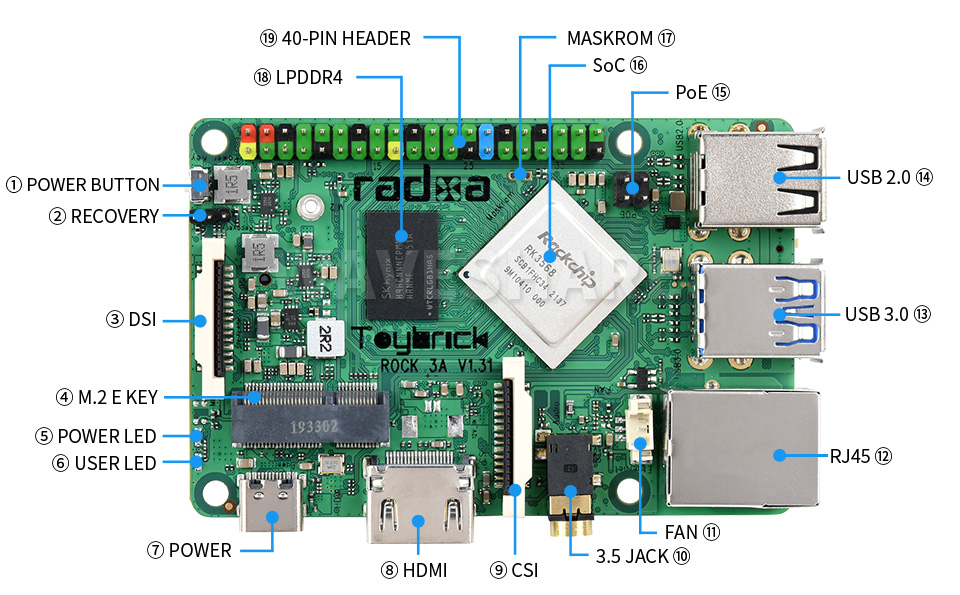

Board

1 Power on/off
turn on/off the device, allows forced shutdown by holding down the button for 6s		 11 PWM fan header
for 5V PWM cooling fan
2 3-pin Recovery header
FSPI_CLK <-> GND: disable SPI Nor flash
RECOVERY <-> GND: enter loader mode		 12 RJ45 Gigabit Ethernet port
3 MIPI DSI display port 13 Dual USB 3.0 Type-A
4 M.2 E KEY slot
for connecting wireless module		 14 Dual USB 2.0 Type-A
5 Power LED indicator 15 PoE header
external PoE module is required to enable PoE
6 User LED indicator 16 RK3568 SoC
22nm quad-core 64-bit processor
7 Power supply
Type-C power input connector, 5V ~ 21V		 17 MASKROM mode startup
short it to disable eMMC
8 HDMI port
Supports 4k@60Hz video output		 18 LPDDR4-3200 SDRAM memory
4GB
9 MIPI CSI camera port 19 40-PIN GPIO header
10 3.5 mm standard headphone jack
supports 24-bit/96KHz audio output

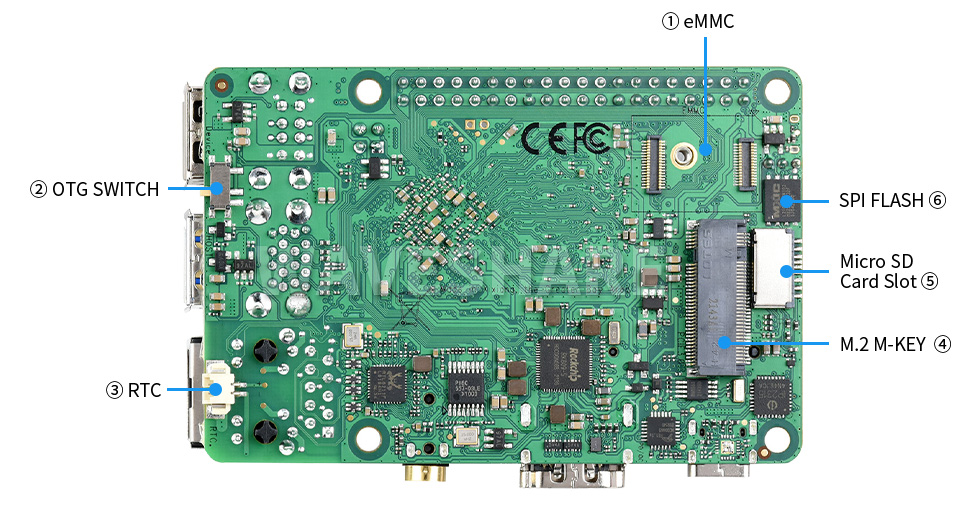

1 eMMC storage module socket
32 GB eMMC modules		 4 M.2 M-KEY slot
allows connecting M.2 NVME SSD
2 OTG switch 5 Micro SD card slot
for connecting Micro SD card with pre-burnt system image to startup the ROCK3 Model A
3 Standard RTC header 6 SPI FLASH

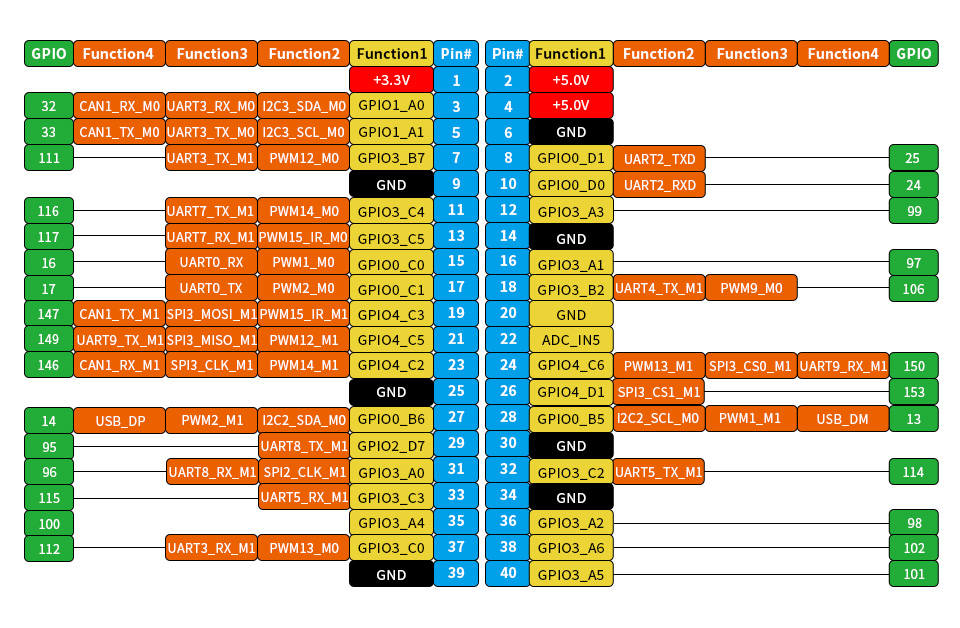

Pinout

Resources

Shipping List

Weight: 0.083 kg

  1. ROCK3 Model A x1
  2. Wireless module x1
  3. Storage module 32 GB x1


Schematics (Rock3a_v1.3_sch.pdf, 1,301 Kb) [Download]

.DXF File (Rock3a_v1.3_2d_dxf.zip, 103 Kb) [Download]
