D-E-KIT-01 Falcon 250 Ready To Fly Quadcopter w FlySky i6 and Camera

US$249.99
D-E-KIT-01
In stock
+

Eachine Falcon 250 Ready To Fly Quadcopter Gear includes a Falcon 250 Quadcopter, a 1500mAh 35C 11.1v Li-Po Battery, a 2-3 cell 800mA Li-Po Charger, a Flysky i6 2.4 GHz TX & RX Unit all encompassed in a vinyl case for easy transportation.

We have attached the UAV configuration file that opens with librepilot in attachments, if you want to configure or restore the original factory settings.

This Ready To Fly kit will allow you to get your very own racing quadcopter up and flying in no time. No need to calibrate to build the unit and has the ability to offer First Person Video!

Content:

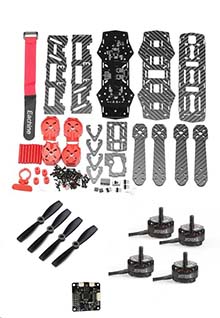

Frame:
Dimensions: 230 x 245 x 90mm
Weight: 408 grams (without Propellers + Battery)
Compatible with MAX 6 inch

Propellers
Compatible with 2206 and 2208

Motors

Can be Used with 3-4S battery
Inclined Motor base for faster lift speed
Removable protection motor base

ESC:
Continuous Current: 20A
Instantaneous Current(10s): 30A
BEC: No
Battery: 3-4S (11.1-14.4v)
Weight: 7 grams
Size (without plug): 28 x 15 x 6 mm
OneShot 125 support
Refresh rate: 500Hz

Motor:
-KV: 2300 RPM/V
-Max Thrust: 440 grams
-No. of Cells: 2-4S
-Propeller: 5-6 inch
-Length: 32.2mm
-Diameter: 27.9mm
-Weight: 25 grams

Flight Controller:
CC3D EVO (no GPS functions)
6 DOF: Accelerometer + Gyro
Dimensions: 36 x 36 mm
On-Board 4Mbits EEPROM
On-Board 128KB Flash
On-Board 20KB Ram
Running on STM32 32-bit Microcontroller



Battery:
Eachine Brand
3 Cells or 11.1v Li-Po Battery
Dimension: 75 x 32 x 28mm
Weight: 143 gram
Continuous Discharge rate: 35C
Capacity: 1500mAh
XT60 Plug





Charger:
B3 Pro Compact Charger
2-3S (7.4-11.1v)
US Plug 100-240 VAC input
Max Charge current: 3*800mA
Power: Orange
Charging: Red
Standby: Green
Full: Green

Controller:

6 Channel Transmitter
Model Support for Glider/Heli/Airplane
RF Range: 2.40 – 2.48 GHz
Bandwidth: 500KHz
Band: 142
RF Power: < 20dBm
2.4GHz System: AFHDS 2A and AFHDS
Code type: GFSK
Sensitivity: 1024
Low Voltage Warning: < 4.2V
DSC Port: PS2; Output PPM
Charger port: No
Ant Length: 26mm*2 (dual Antenna)
Weight: 392 grams
Power Transmitter: 6v 4*AA
Display Mode Transmitter: Transflective STN
positive type, 128x64 dot matrix
VA73x39mm, white backlight
Dimensions Transmitter: 174x89x190mm
On-Line Updates Transmitter: Available
Color: Black
Certificate: CE0678, FCC
Model Capacity Transmitter: 20
Channel Order:
CH1- Aileron CH2-Elevator CH3-Throttle
CH4-Rudder CH5 and CH6 are reserved
Power Receiver: 4.0-6V
Dimensions Receiver: 40.4x21.1x7.35mm
I-Bus Port Receiver: none
Data Acquisition: none

























FPV:

FT200 Video Transmitter
Wideband FM Modulate
Video Output: NTSC
Output Impedance: 50 Ohm
Output Power: 23-24 dBm
Channel: 32 CH
Operating Voltage: 7v-24v
Supply Current: 190mA
Operating Temperature: -10~85 Video
Bandwidth: 0~8.0 MHz
Audio Carrier Frequency: 6.5 MHz
Video Input Level: 0.8~1.2 Vpp
Video Input Impedance: 75 Ohm
Audio Input Level: 0.5~2.0 Vpp
Audio Input Impedance: 10K Ohm
Transmitting distance: ~300m (open area)
LED indicators for Fr/Ch
Connector: RP-SMA Female
Antenna connection: RP-SMA Male, LHCP
Dimension: 38mm x 22.5mm x 6mm
Weight: 6g (without antenna)
700TVL Camera
Power supply: 3.6-5.5V (powered off TX)
Power consumption: 60mA @5V
Imager: 1/3” CMOS, more than 700TVL
Angle: 127° diagonal FOV, 110° horizontal FOV
FPV tuned light handling
NTSC or PAL (selectable; jumper on = PAL).
Lens: 2.6mm IR coated
FOV: 127°diagonal 110° horizontal (ideal for fixed camera)
Operation Temperature: -20 to 70°C
Square: 32 X 32 X 23.5mm
Lens extrude (LxDia): 15mm X 14mm
Weight: 12g

Case:
Precut Vinyl case protecting from weather
and providing easy transportation!
Weight: 371 grams
Dimension: 435 x 105 x 290 mm













eachine manual(1) (eachine_manual-1.jpg, 1,289 Kb) [Download]

eachine manual(2) (eachine_manual-2.jpg, 1,766 Kb) [Download]

D-E-KIT-01uav (D-E-KIT-01.uav, 24 Kb) [Download]
